Contor de debit

Brooks Instrument 1350/D2A4D1A6E020 (10-30 ln/h)

SKU: 3012

În Stoc

Livrare 24/7 posibilă

Selectați Condiția

Utilizat
Obținut din mediu de lucru

Fără TVA: €55,00 (2 disponibil)

Incl. TVA: €66,55

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informații despre garanție

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Perioade de garanție în funcție de condiții

Nou 12 luni

Recondiționat 3 luni

Utilizat DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Descriere

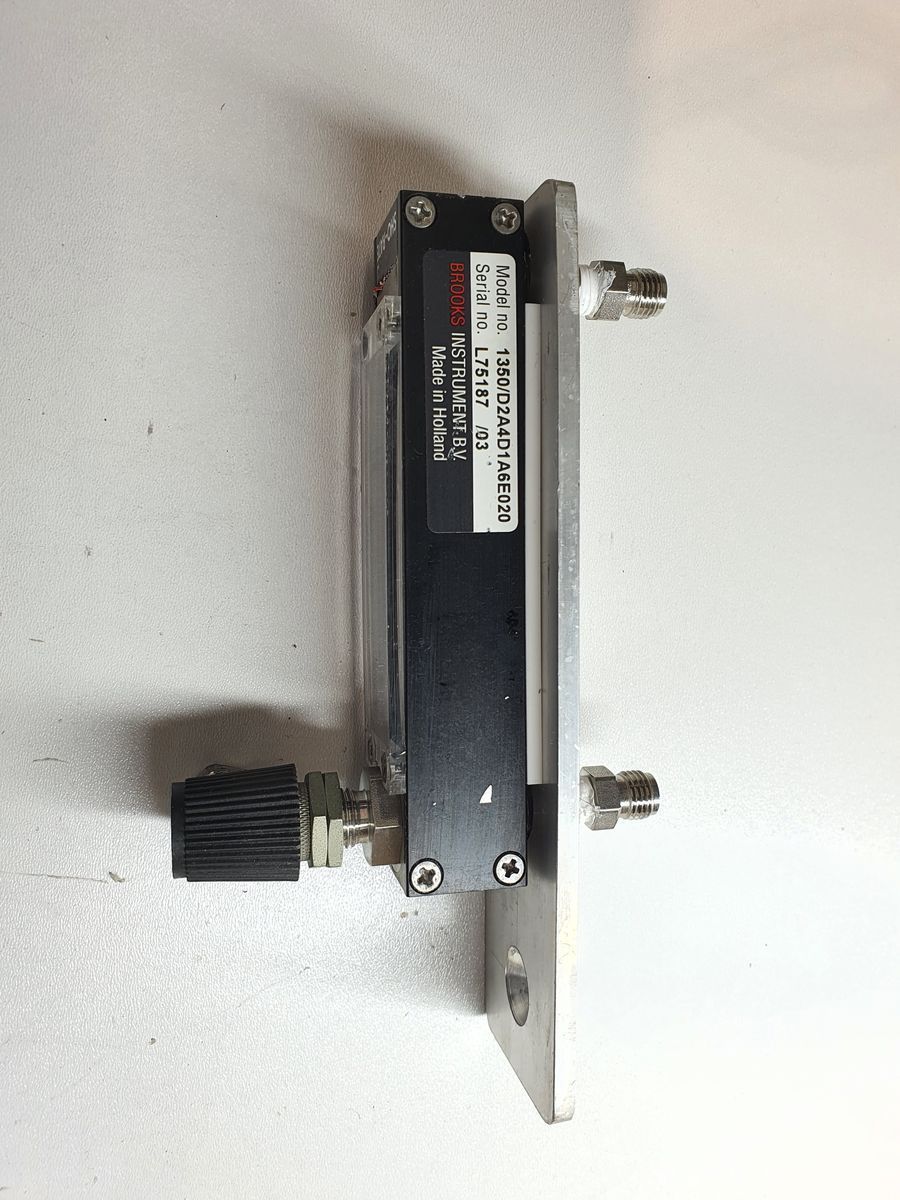

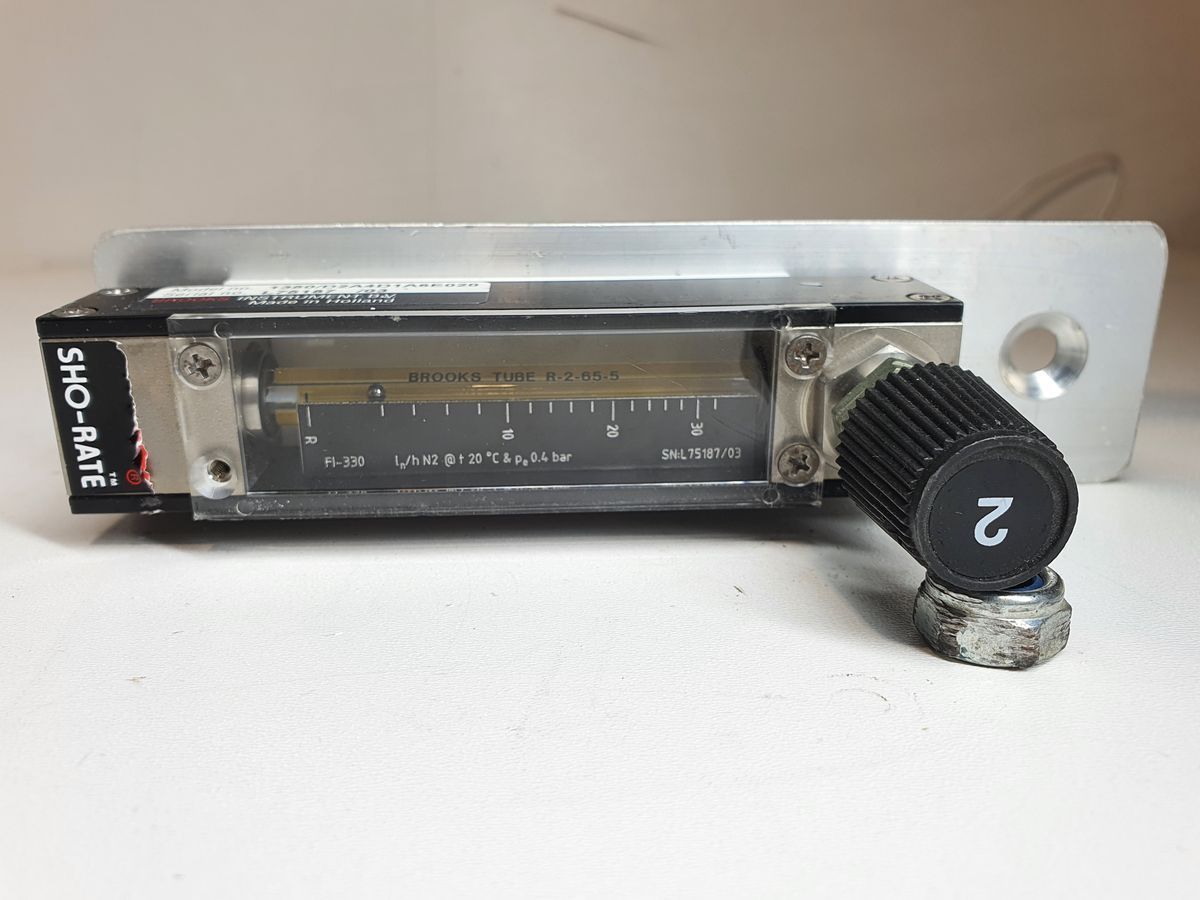

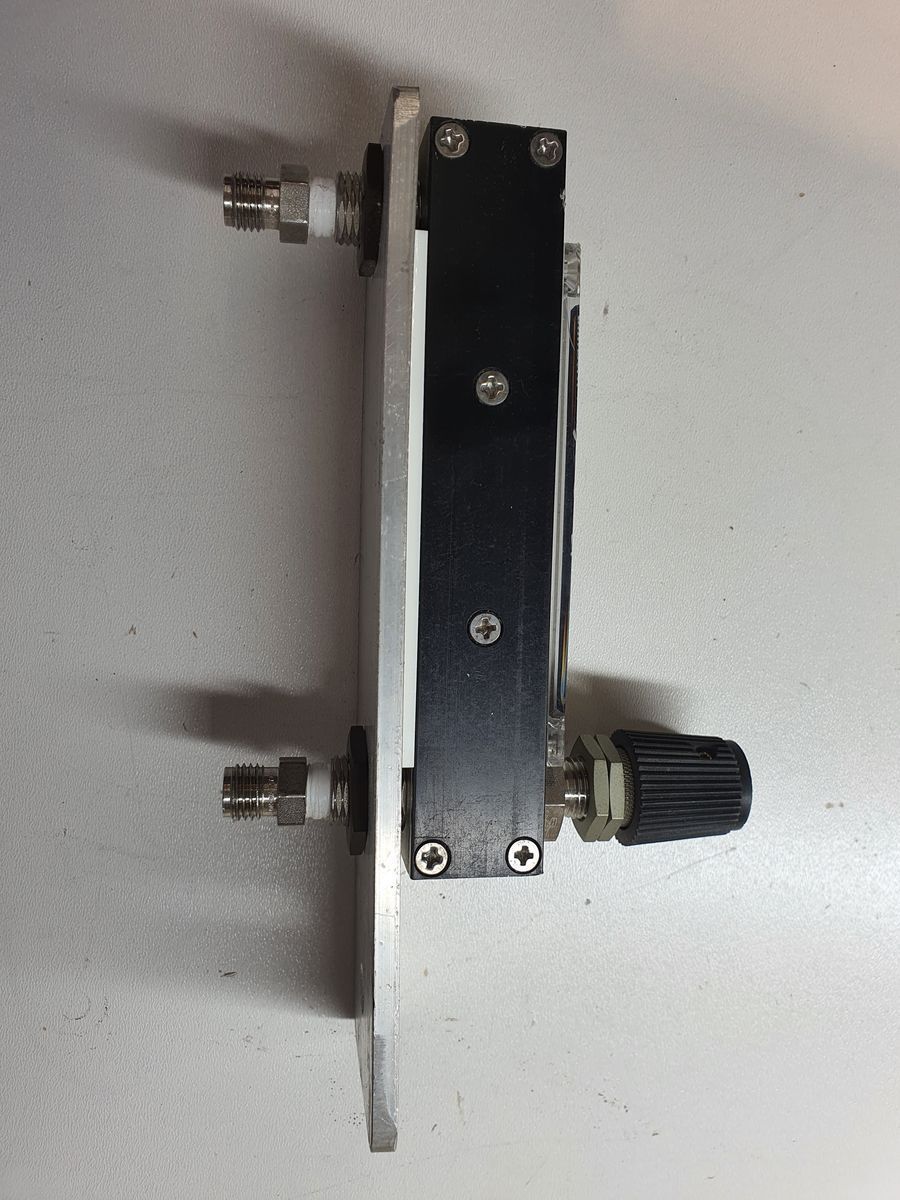

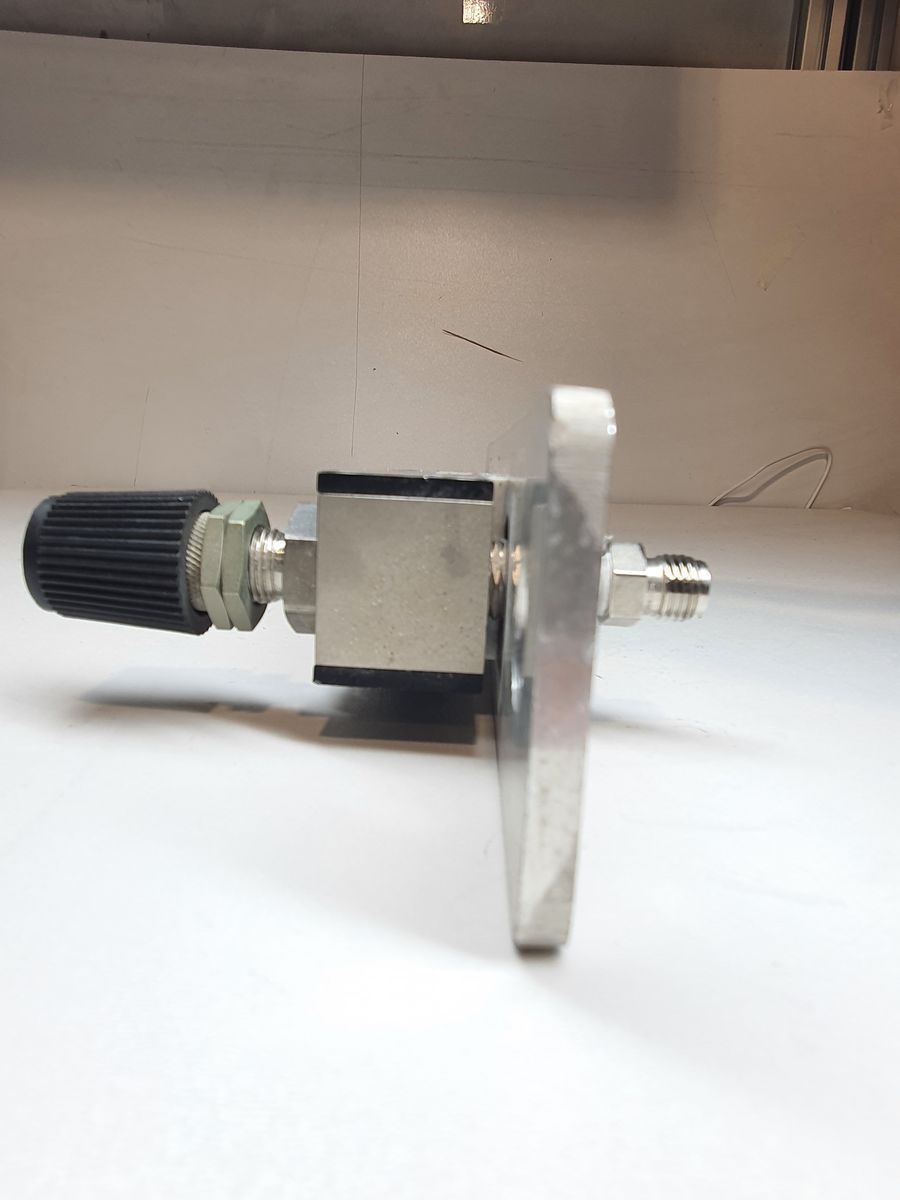

Brooks Sho-Rate™ 1350 Flowmeter

Manufacturer: Brooks Instrument B.V.
Country of Manufacture: Netherlands

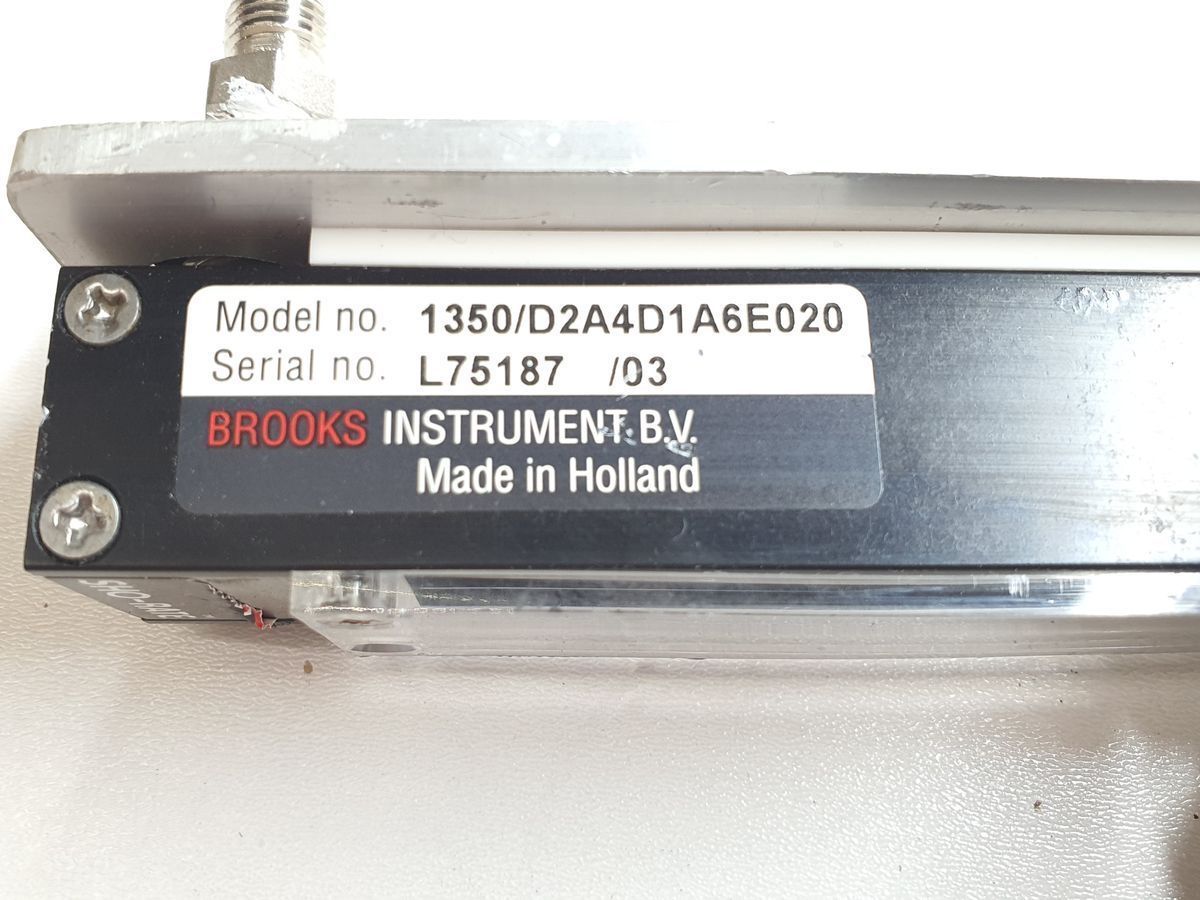

Model: 1350/D2A4D1A6E020
Serial No.: L75187
Product Type: Variable Area Flowmeter (Rotameter)

Parameter	Specification
Measurement principle	Float position (variable area)
Indication	Direct visual reading via float position
Measured medium	Nitrogen (N₂)
Flow range	10–30 Fl–330 ln/h N₂
Accuracy	Typically ±5% of full scale
Repeatability	Excellent repeatability for stable measurement
Calibration temperature	20 °C
Inlet pressure (Pe)	0.4 bar
Operating temperature	20 °C (calibration condition)
Metering tube material	Borosilicate glass
Float material	As defined by D1 configuration
Installation orientation	Vertical

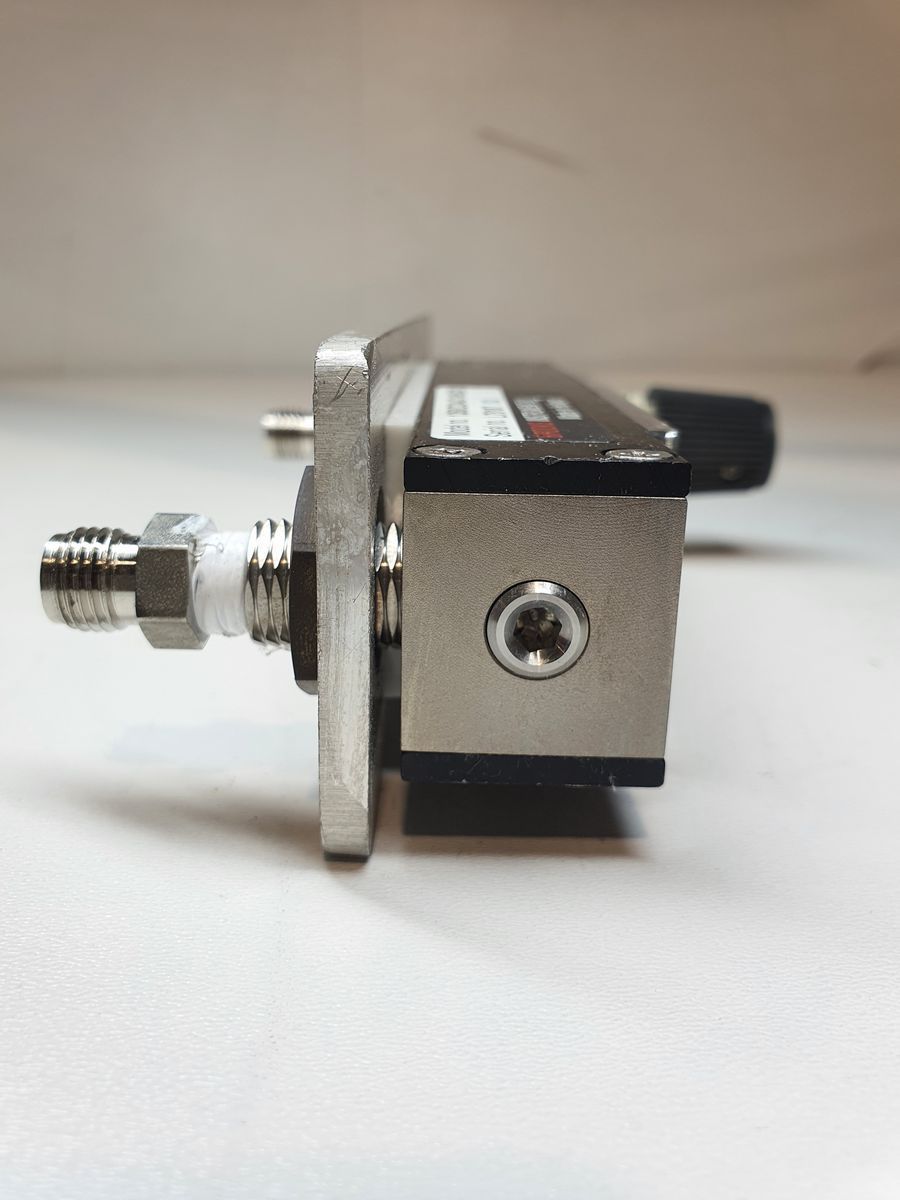

Process connections	1/8" or 1/4" NPT (model-dependent)
Mounting	Panel mounting, optional rear or side connections
Country of manufacture	Netherlands
Compliance	PED SEP (Sound Engineering Practice)
