Brooks Instrument FC 8744

SKU: 7013

În Stoc

Utilizat
Obținut din mediu de lucru

Fără TVA: €75,00 (1 disponibil)

Incl. TVA: €90,75

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Perioade de garanție în funcție de condiții

Nou 12 luni

Recondiționat 6 luni

Utilizat 3 luni

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

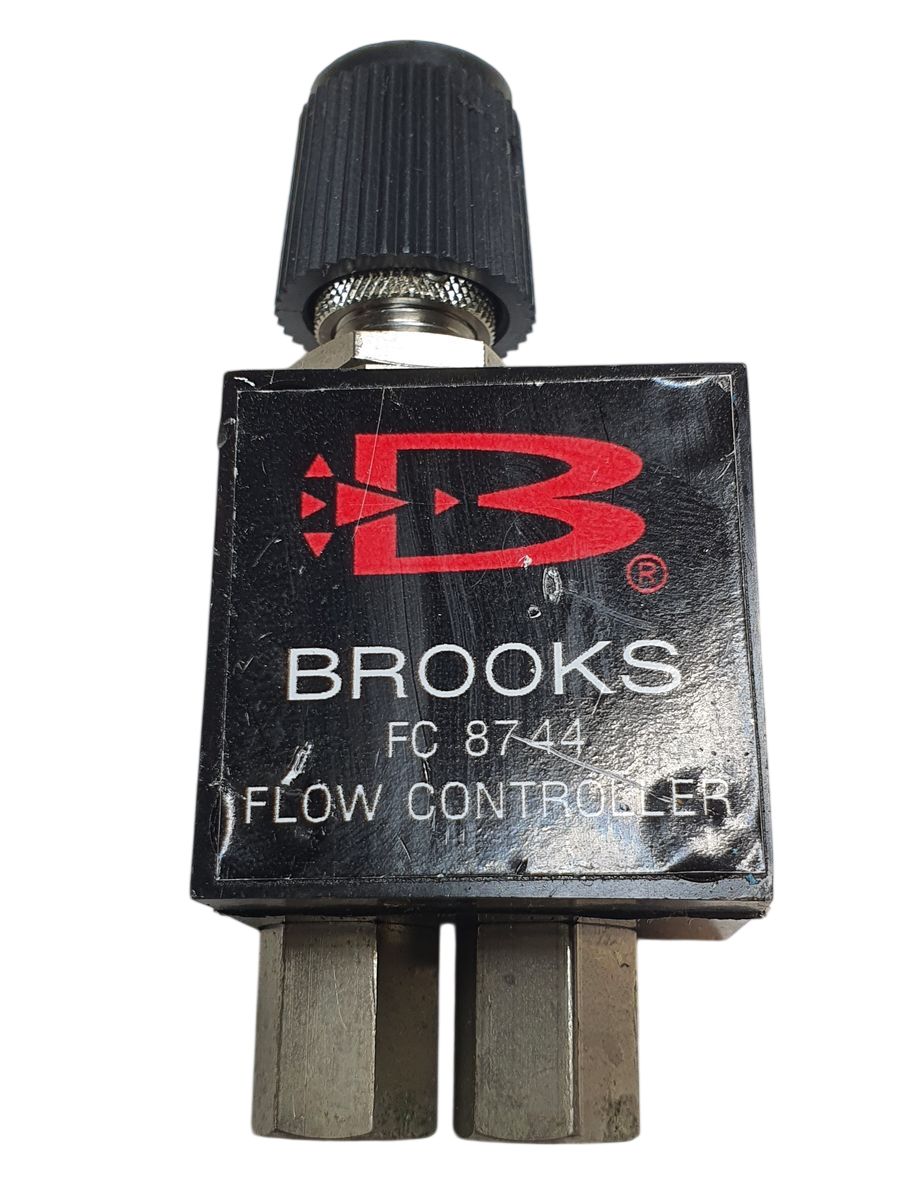

Brooks Instrument FC 8744 Manual Flow Controller

Parameter	Specification
Product Type	Manual Flow Controller
Differentiator	Available as standalone or integrally mounted to flow meter
Application	Low flow measurement and control
Suitable Media	Air, Water, compatible liquids
Flow Range – Air (Full Scale)	0.1 – 200 scfh
	0.04 – 100 lpm
Flow Range – Water (Full Scale)	10 – 240 ccm
	0.2 – 40 gph
Materials of Construction	Stainless Steel, Brass, Aluminum
Accuracy	Refer to model-specific data sheet
Maximum Operating Temperature	178 °C (350 °F)
Maximum Operating Pressure	Refer to maximum pressure ratings table in data sheet
O-Ring Materials	Viton®, Buna-N, Kalrez®, EPR, Kalrez®/Teflon®
Process Connections	1/8" – 1/4" F-NPT
	1/8" – 1/4" Tube Compression
	1/4" ID Hose
	3/4" F-NPT
	Integral connection
