Transmițător de presiune

Druck RTX 1000A 13-G-3-M-0-0-LA

SKU: 13001

În Stoc

Utilizat
Obținut din mediu de lucru

Preț la cerere

Utilizat
Obținut din mediu de lucru

Fără TVA: €350,00 (1 disponibil)

Incl. TVA: €423,50

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Perioade de garanție în funcție de condiții

Nou 12 luni

Recondiționat 3 luni

Utilizat DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

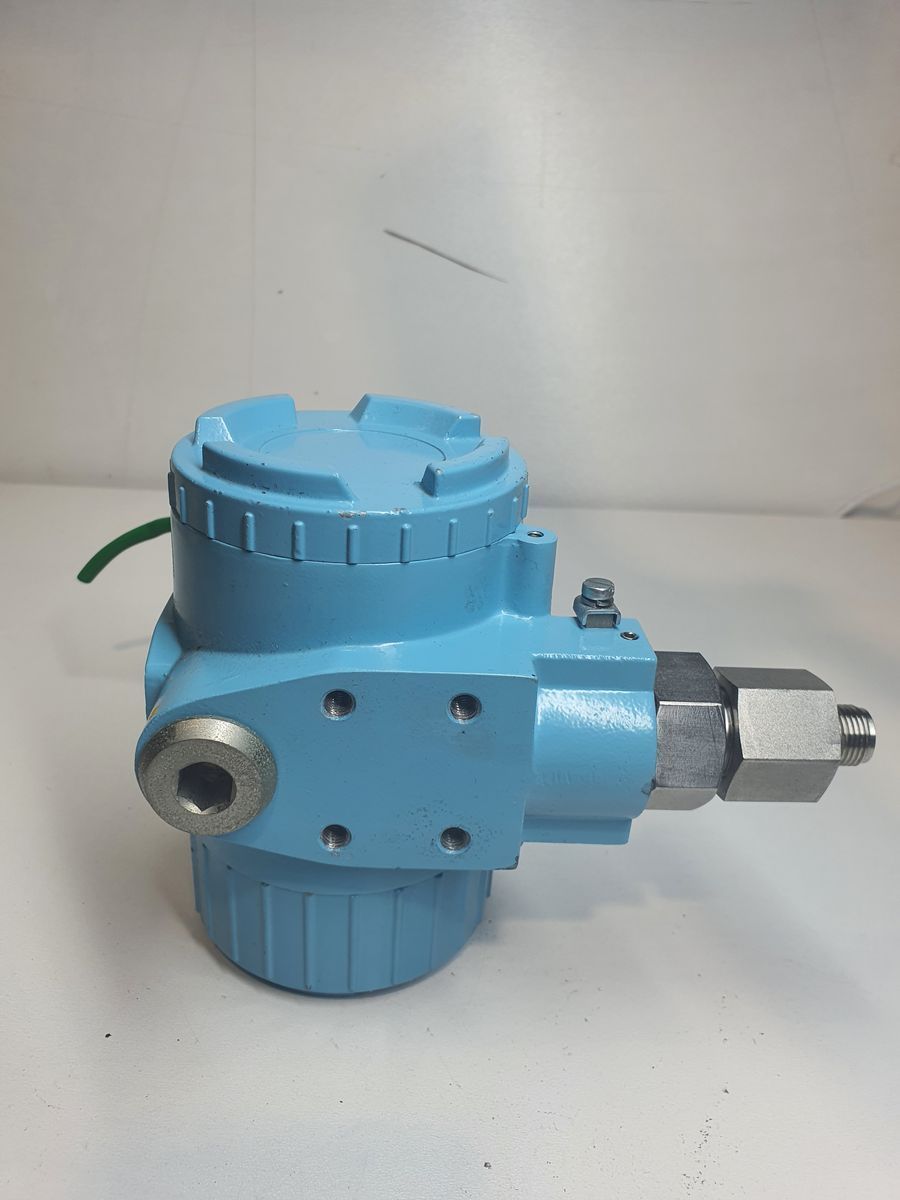

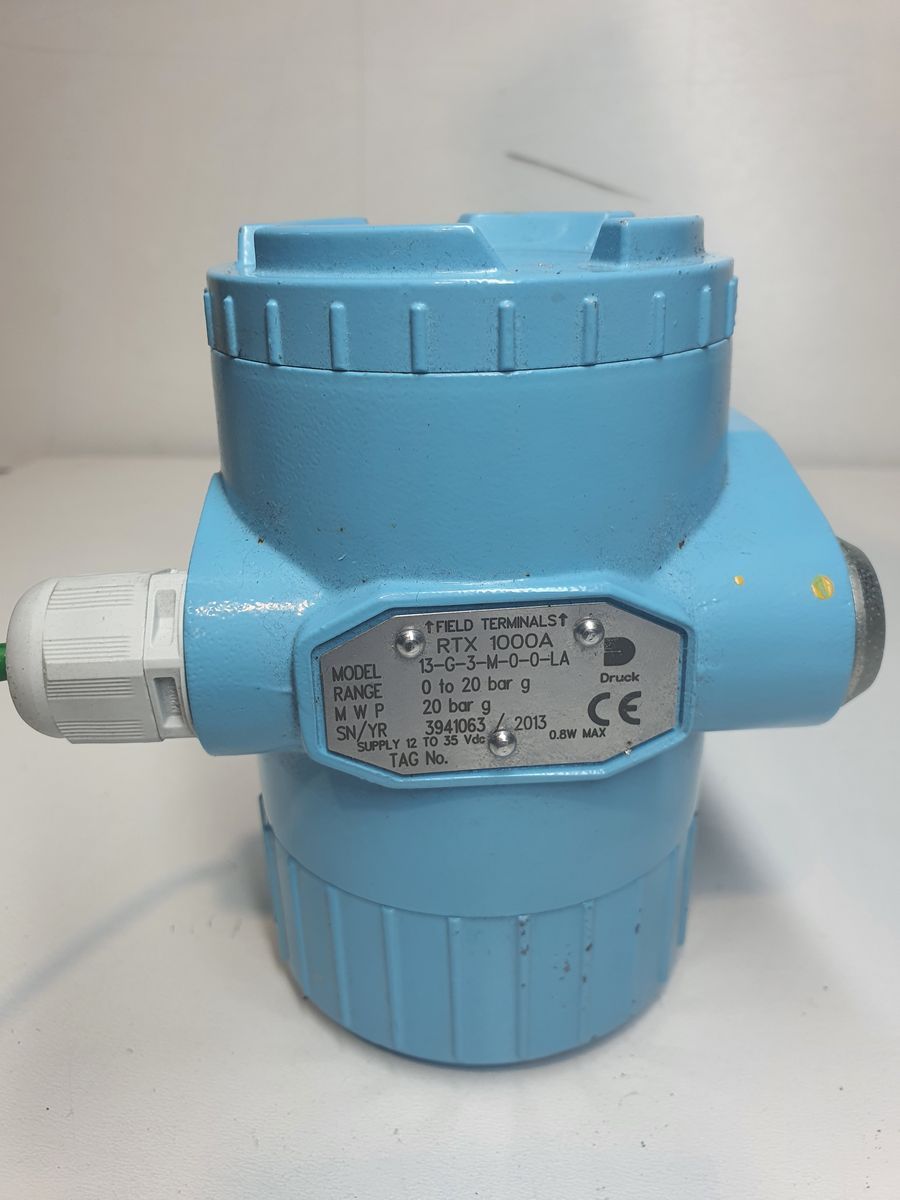

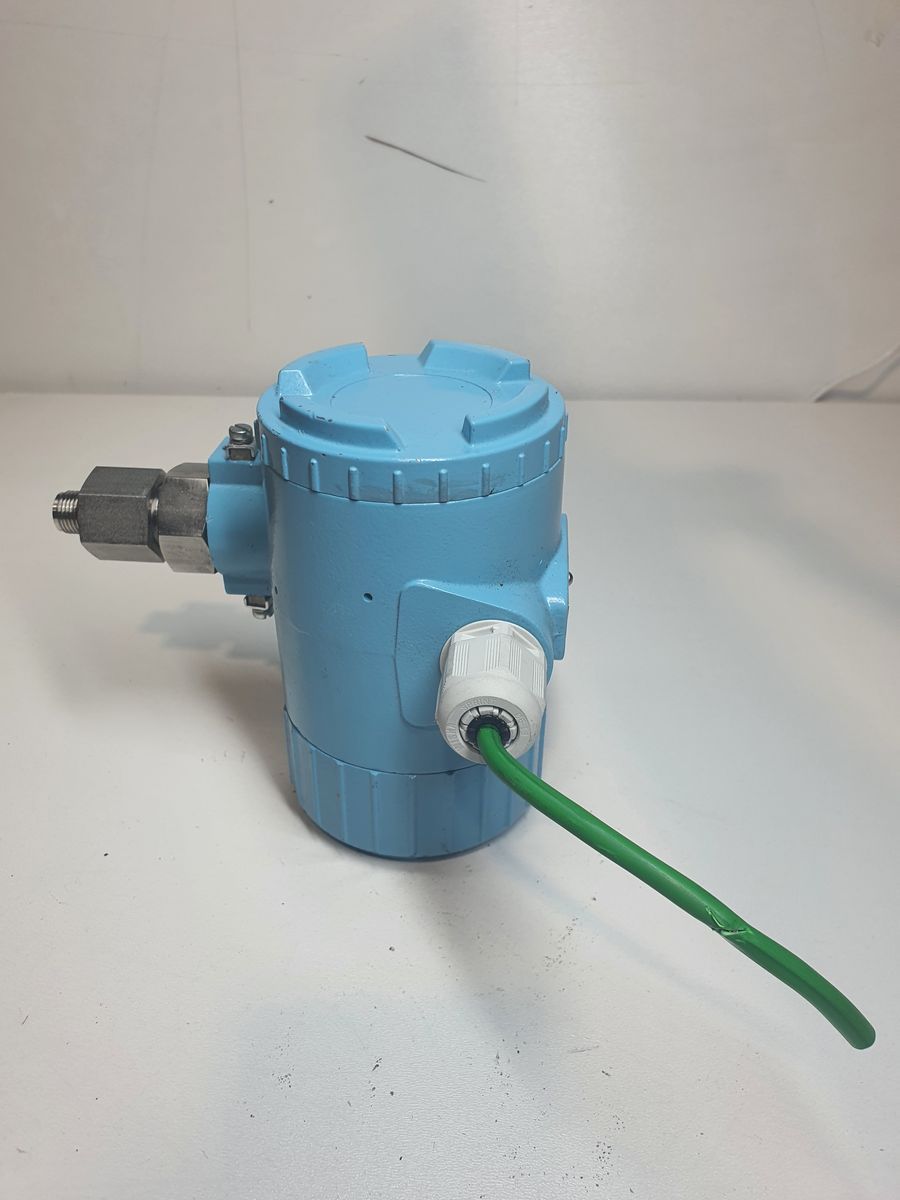

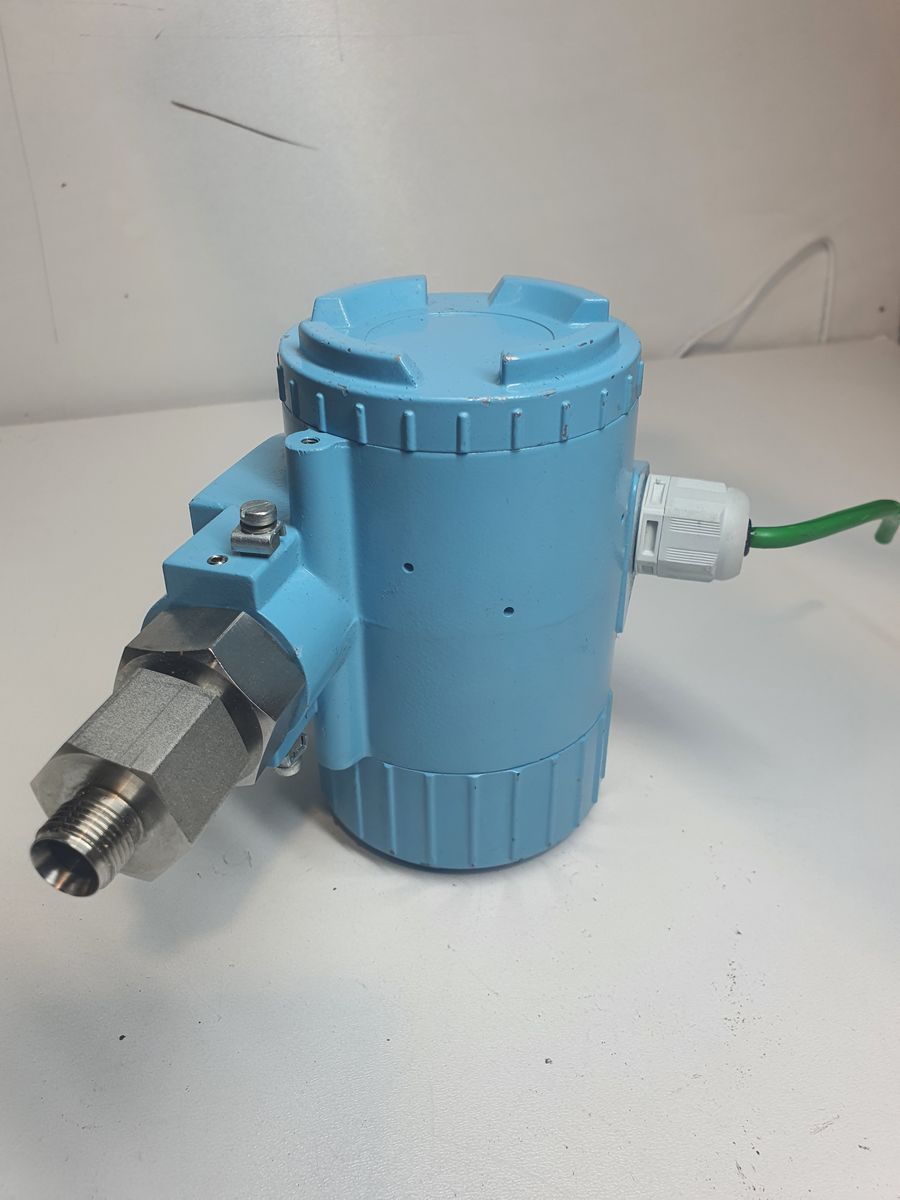

Druck RTX 1000A 13-G-3-M-0-0-LA Druktransmitter

Category	Parameter	Specification
General	Manufacturer	GE Druck (Baker Hughes)
	Model	RTX 1000A
	Device Type	Pressure Transmitter (Manometer)
	Year of Manufacture	2013 (Serial No.: 3941063 / 2013)
Pressure	Pressure Range	0 to 20 bar g
	Maximum Working Pressure (MWP)	20 bar g
Electrical	Supply Voltage	12–35 Vdc
	Output Signal	4–20 mA (loop-powered, 2-wire)
Performance	Accuracy	±0.15% of span (Class “A” model)
Materials	Diaphragm	Hastelloy® C276
	Pressure Port	316L Stainless Steel
	Housing	Aluminum alloy, low-copper, epoxy-coated
Configuration	User-Selectable Range	Adjustable 4–20 mA output within defined span ratio using internal push-buttons
