Dungs LGW 3 A2

SKU: 22002

În Stoc

Selectați Condiția

Used

Fără TVA: €35,00 (2 disponibil)

Incl. TVA: €42,35

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informații despre garanție

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Perioade de garanție în funcție de condiții

Nou 12 luni

Recondiționat 6 luni

Utilizat 3 luni

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Descriere

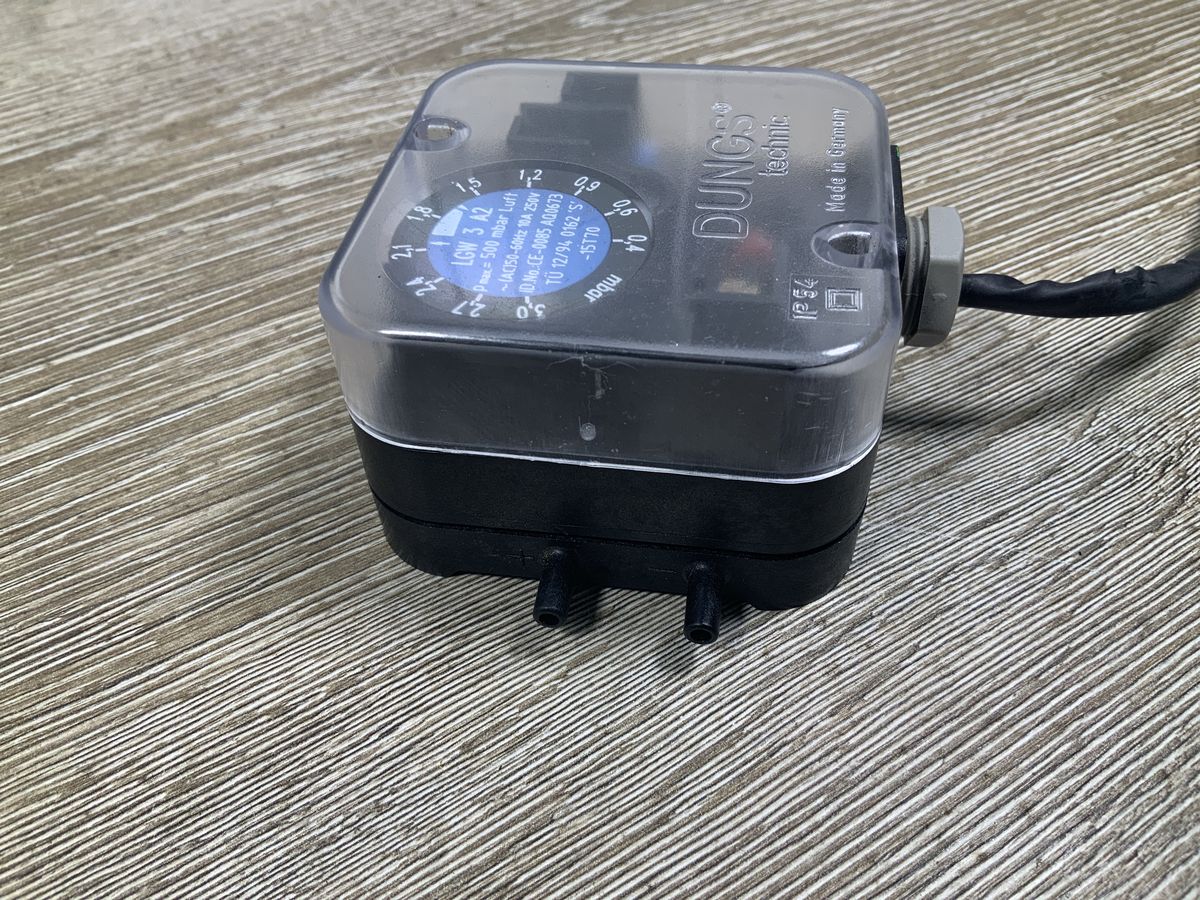

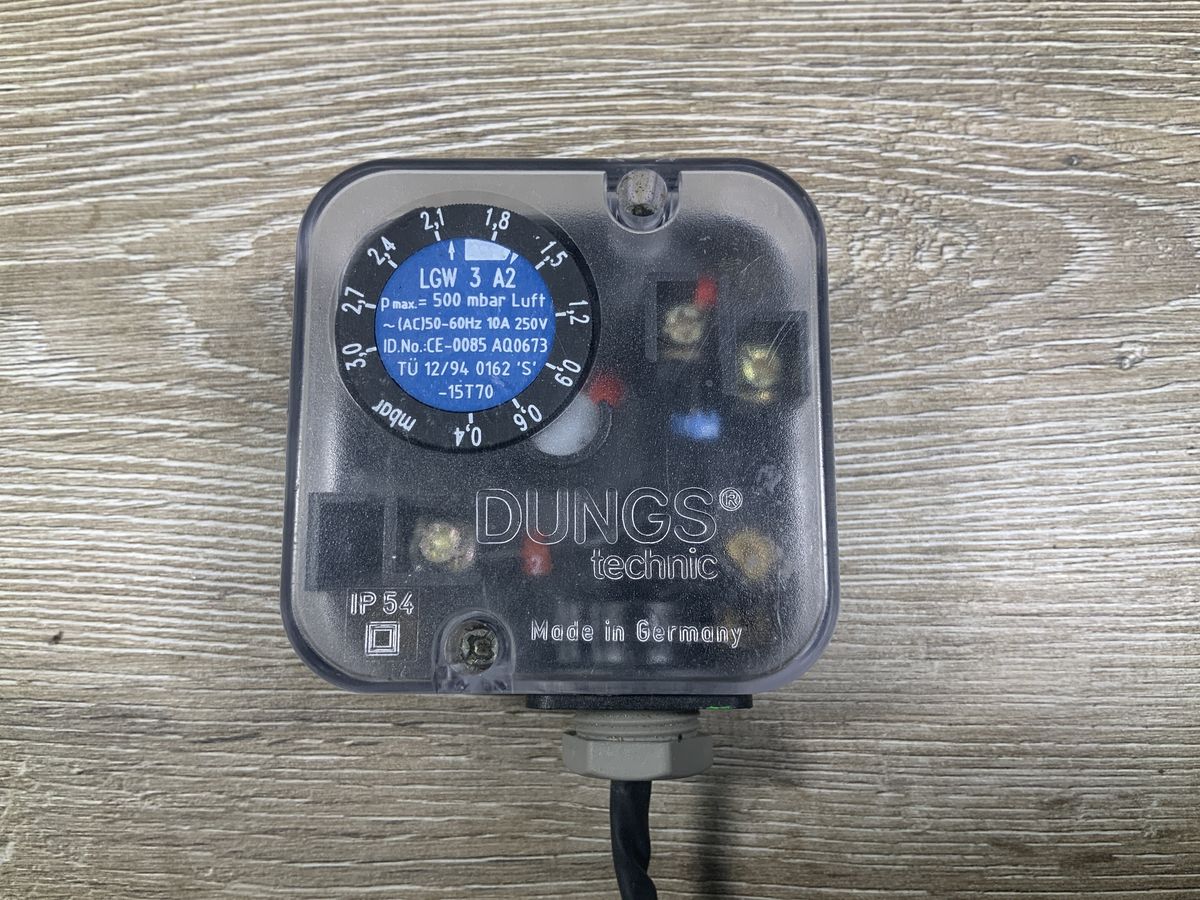

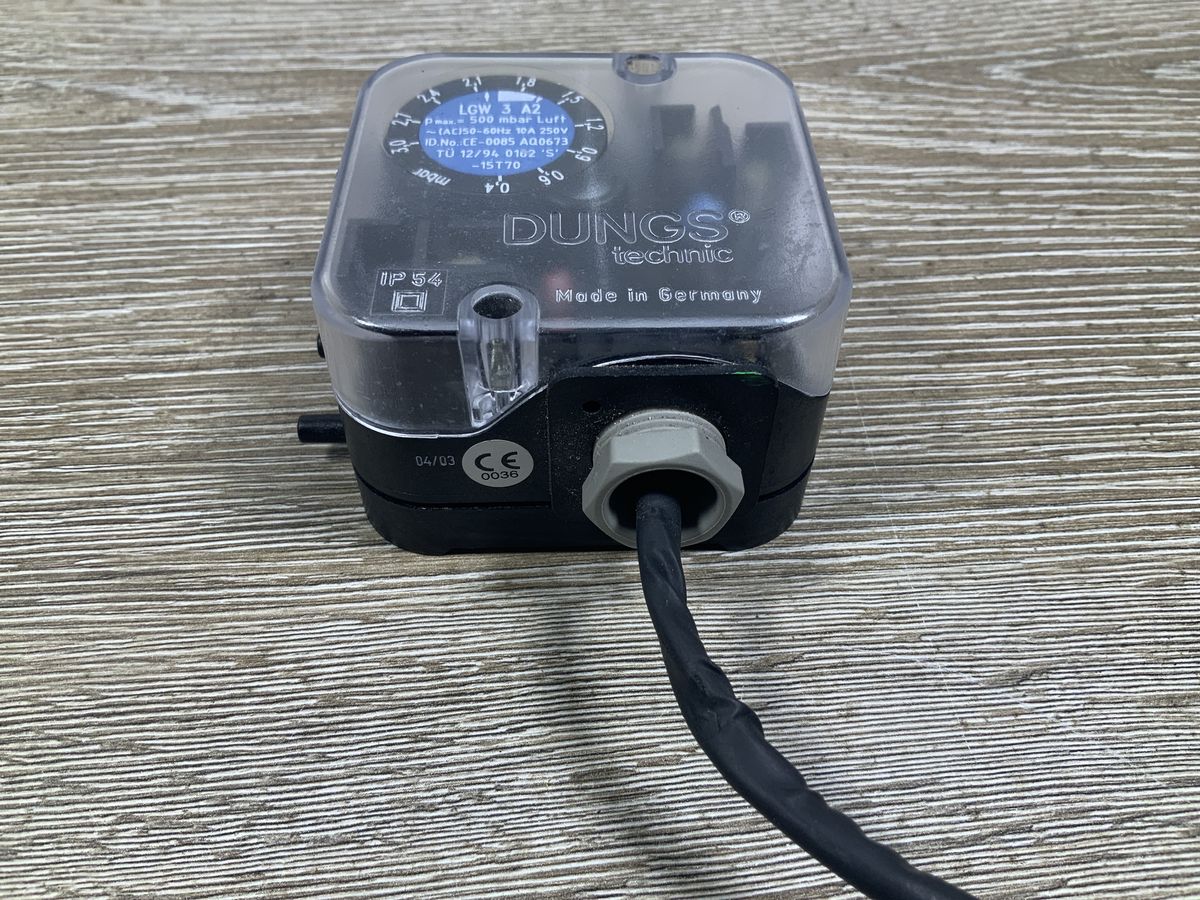

The Dungs LGW 3 A2 is an adjustable differential pressure switch designed for air and non-aggressive gas monitoring in combustion and HVAC systems. It features an adjustable dial scale from 0.4 to 3.0 mbar and a maximum operating pressure rating of 500 mbar. The unit is built into an IP54 rated housing with standard nozzle tube connections.

Specifications – LGW 3 A2

Parameter	Specification
Pressure Range	0.4 - 3.0 mbar
Max. Pressure	500 mbar
Voltage / Current Rating	250 V AC, 10 A, 50-60 Hz
Protection Class	IP 54
Temperature Range	-15 °C to +70 °C (-15T70)
