Transmițător de presiune

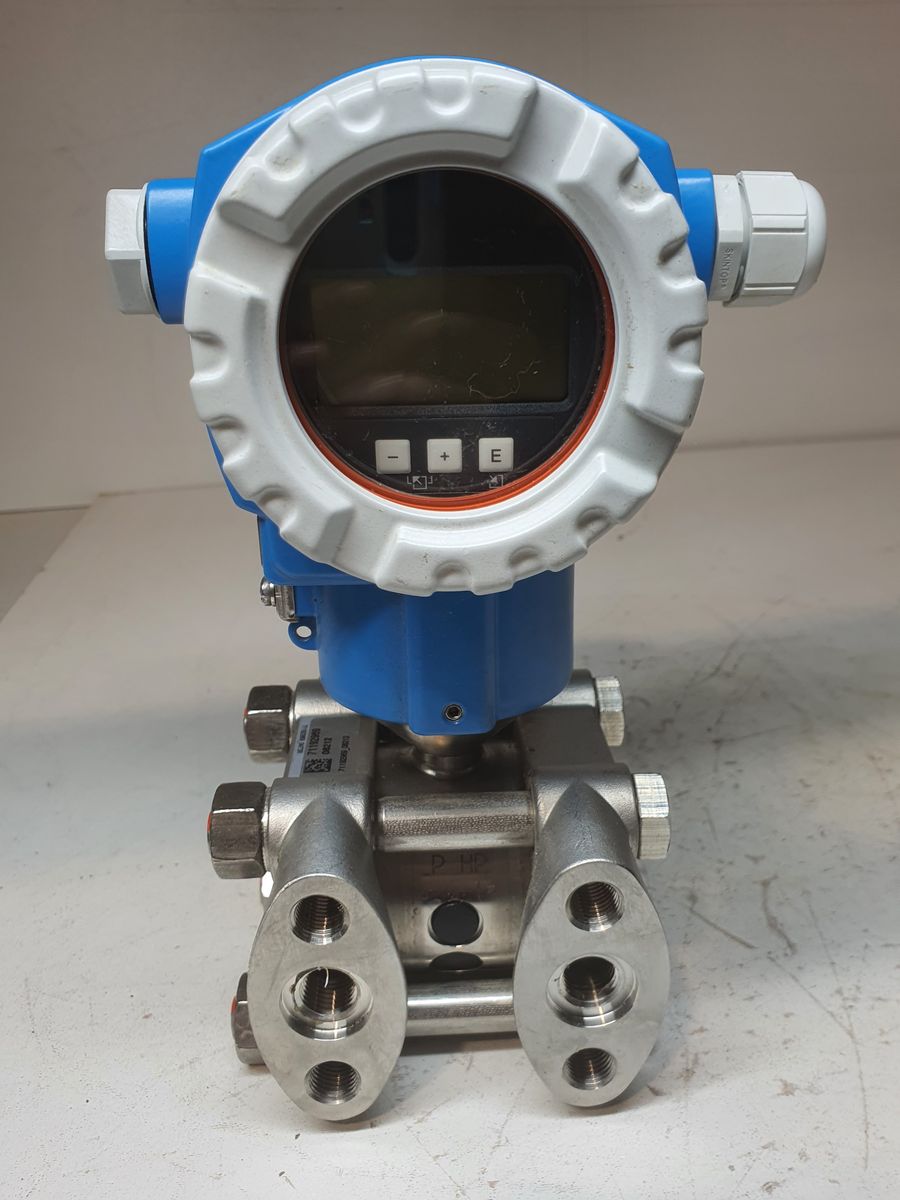

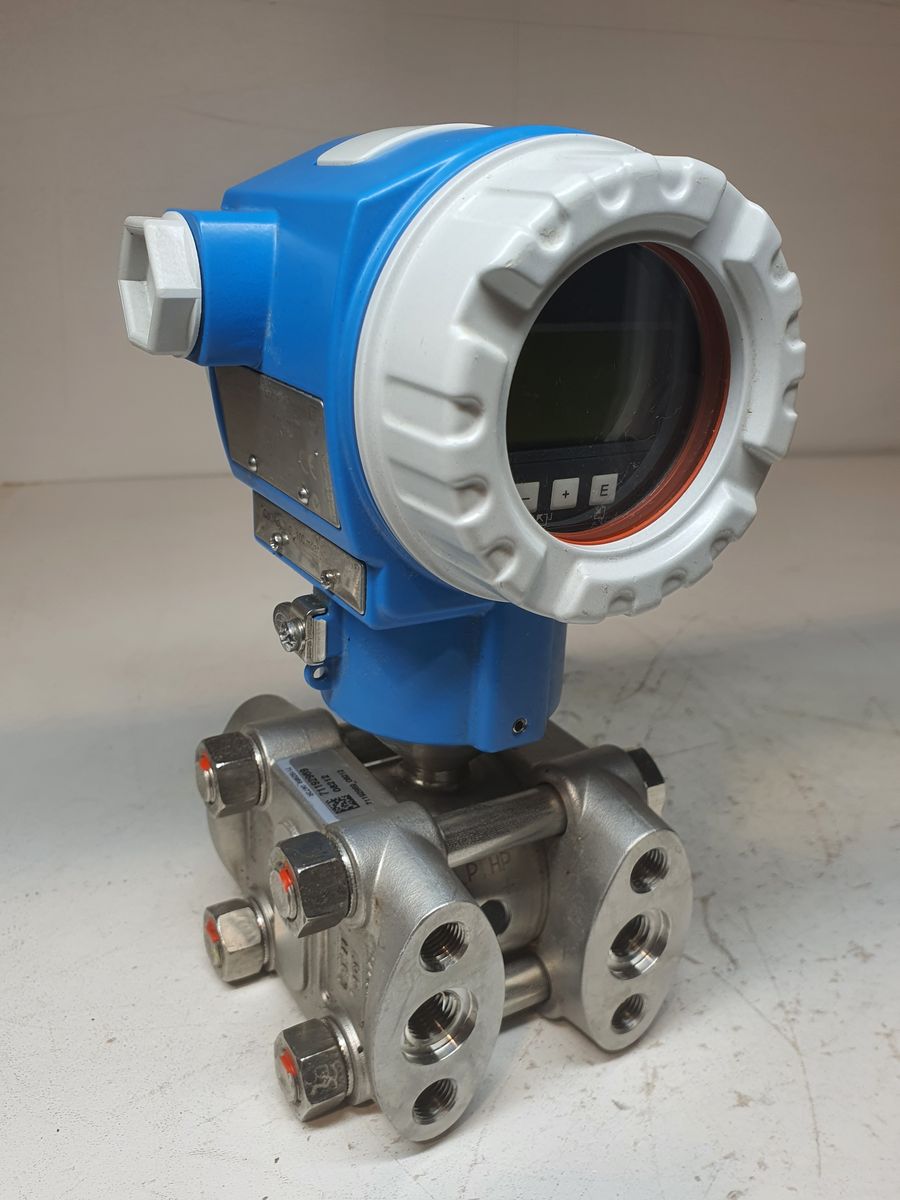

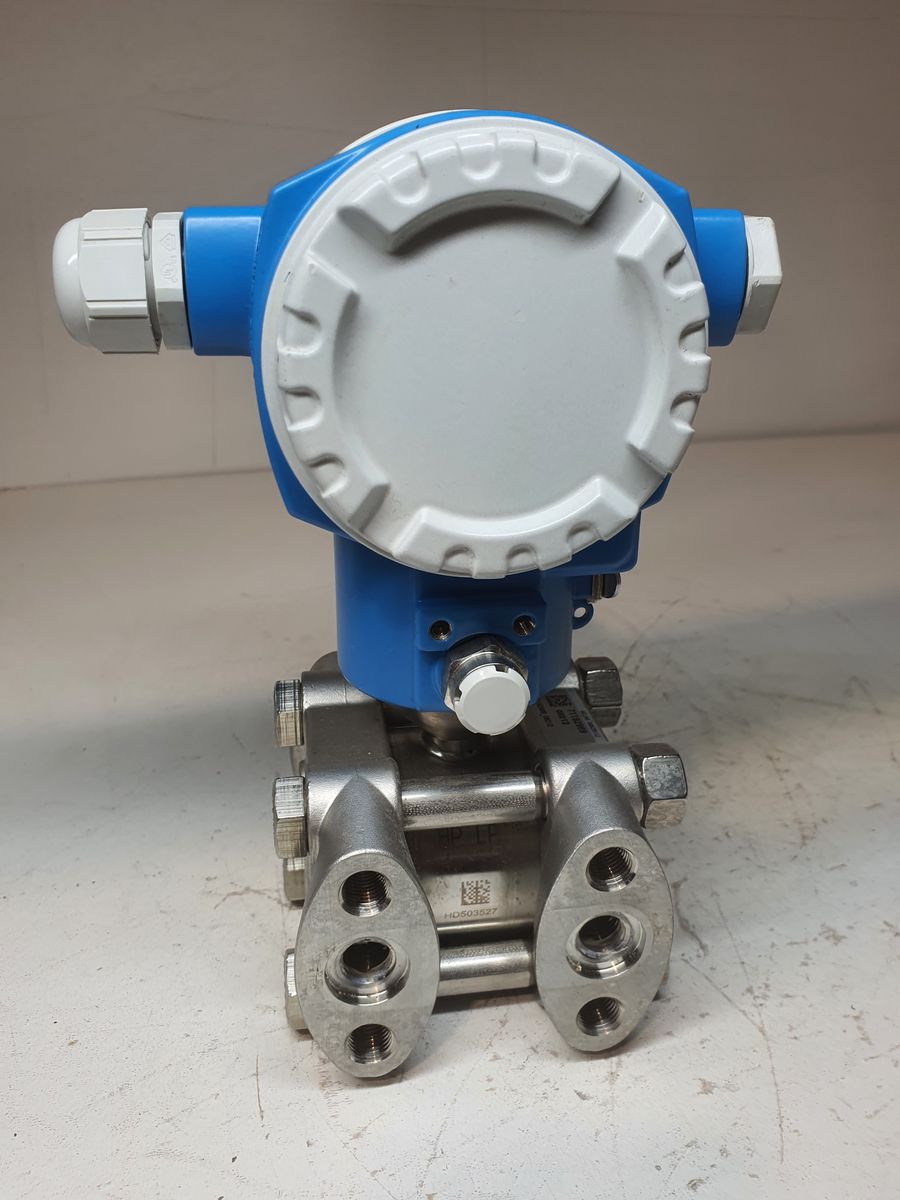

Endress+Hauser PMD75-1MQU7/0
SKU: 13018
În Stoc
Informații despre garanție
Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Endress+Hauser PMD75-1MQU7/0 - HB03500109D
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Endress+Hauser |
| Model | PMD75-1MQU7/0 |
| Instrument type | Differential pressure transmitter |
| Measuring principle | Differential pressure |
| Characteristic | Digital transmitter with metallic measuring diaphragms, Modular transmitter, Long-term stability, High static pressure/Overload resistance, Secondary process barrier |
| Measuring range | –100 … +100 mBAR |
| Calibration / adjustment range | 0 … 100 mBAR |
| Span | 1-100 mBAR |
| Maximum working pressure (MWP) | 160 mBAR |
| Process temperature | -40°C...85°C (-40°F...185°F) |
| Ambient temperature | -50°C...85°C (-58°F...185°F) |
| Supply voltage | 4...20 mA HART |
| Output / supply | 11.5 … 45 VDC |
| Process wetted materials | Alloy C (Hastelloy C) |
| Seal material | Viton |
| Additional wetted material | PTFE |
| Process connection | 1/4-18NPT, RC1/4" |
| Ingress protection | IP66 / IP67 |
| Revision | Rev. 7 |
×
![]()
