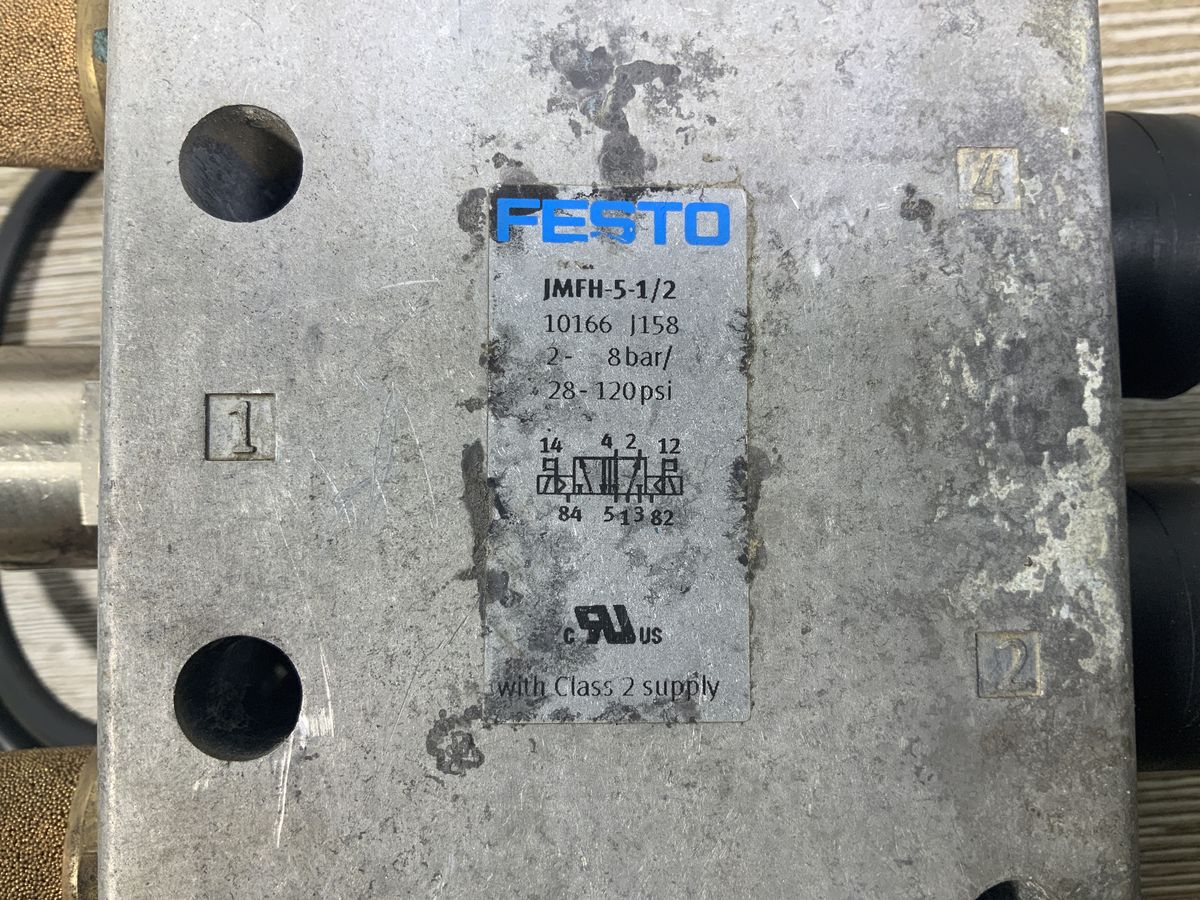

Festo JMFH-5-1/2
SKU: 55003
În Stoc
Informații despre garanție
Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

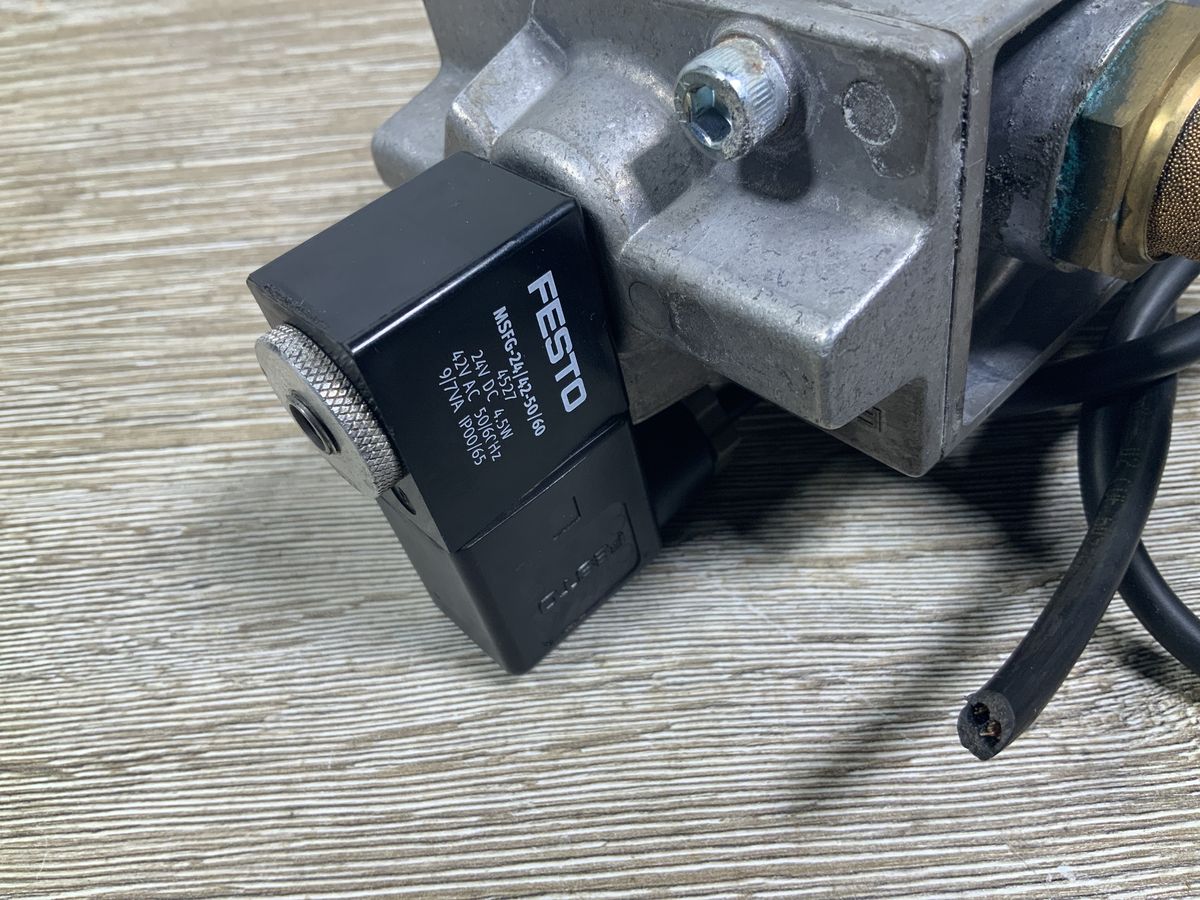

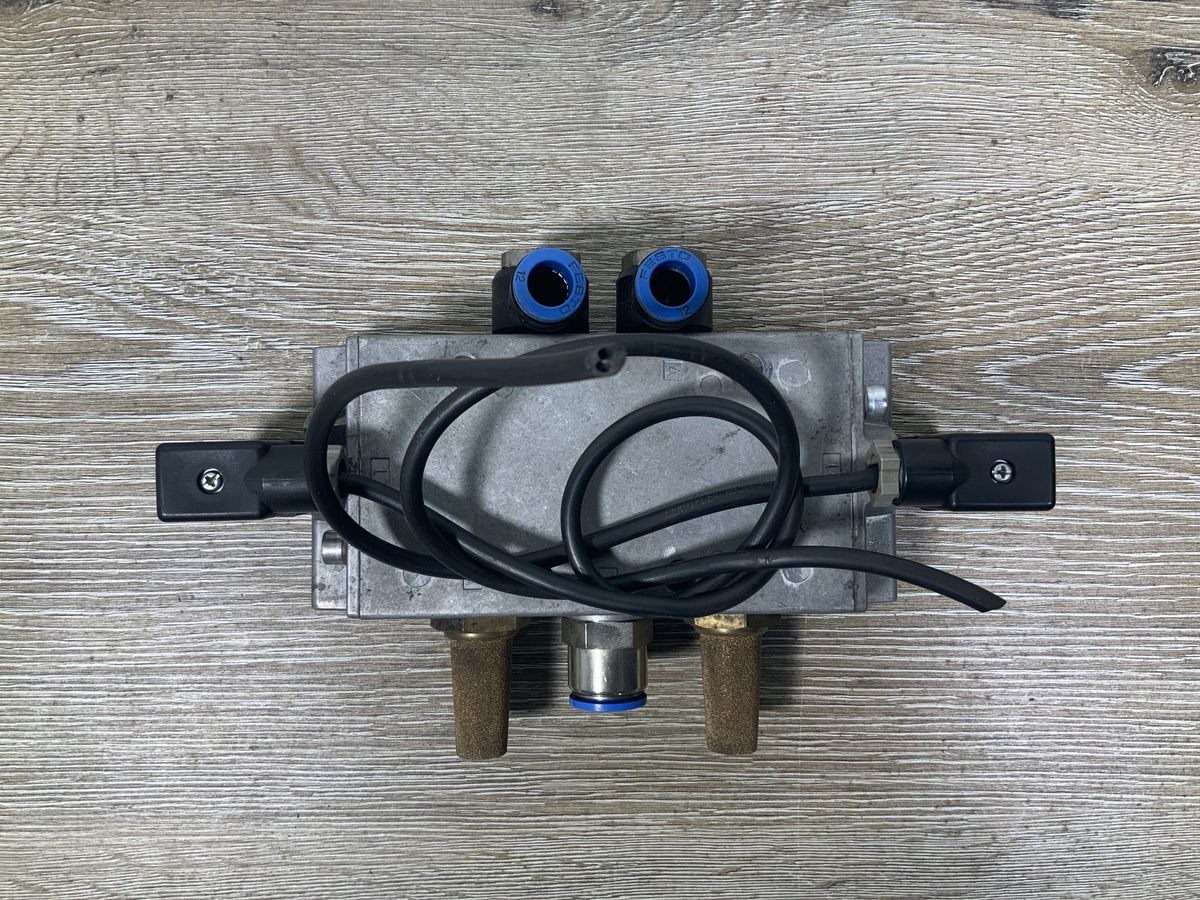

The Festo JMFH-5-1/2 is a 5/2-way bistable double solenoid valve designed for pilot-operated direction control of double-acting pneumatic actuators. It features G1/2 threaded pneumatic working ports and a standard nominal flow capacity of 4,500 L/min across an operating pressure range of 2 to 8 bar. This assembly includes two attached Festo MSFG-24/42-50/60 solenoid coils operating on 24V DC / 42V AC.
Specifications – JMFH-5-1/2
| Parameter | Specification |
|---|---|
| Valve Function | 5/2-Way Bistable Double Solenoid |
| Part Number | 10166 |
| Operating Pressure | 2 - 8 bar / 28 - 120 psi |
| Port Connection | G 1/2 |
| Solenoid Coil Model | MSFG-24/42-50/60 |
| Coil Voltage | 24V DC / 42V AC (50/60 Hz) |
| Power Consumption | 4.5 W (DC) / 9/7 VA (AC) |
| Degree of Protection | IP00/65 |
×
![]()
