Vane Electromagnetice

Festo MFH-3-1 / 4-S

SKU: 55001

În Stoc

Selectați Condiția

Used

Fără TVA: €30,00 (2 disponibil)

Incl. TVA: €36,30

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informații despre garanție

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Perioade de garanție în funcție de condiții

Nou 12 luni

Recondiționat 6 luni

Utilizat 3 luni

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Descriere

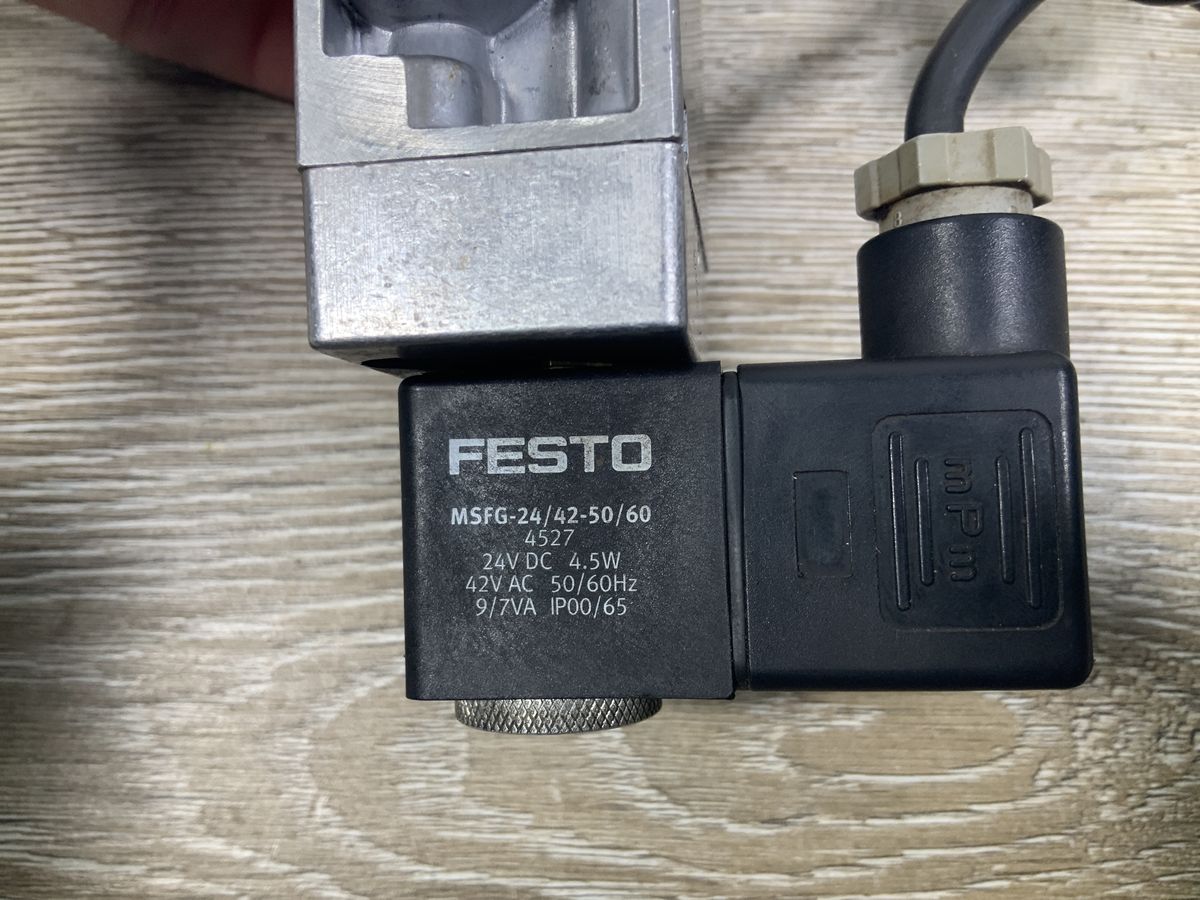

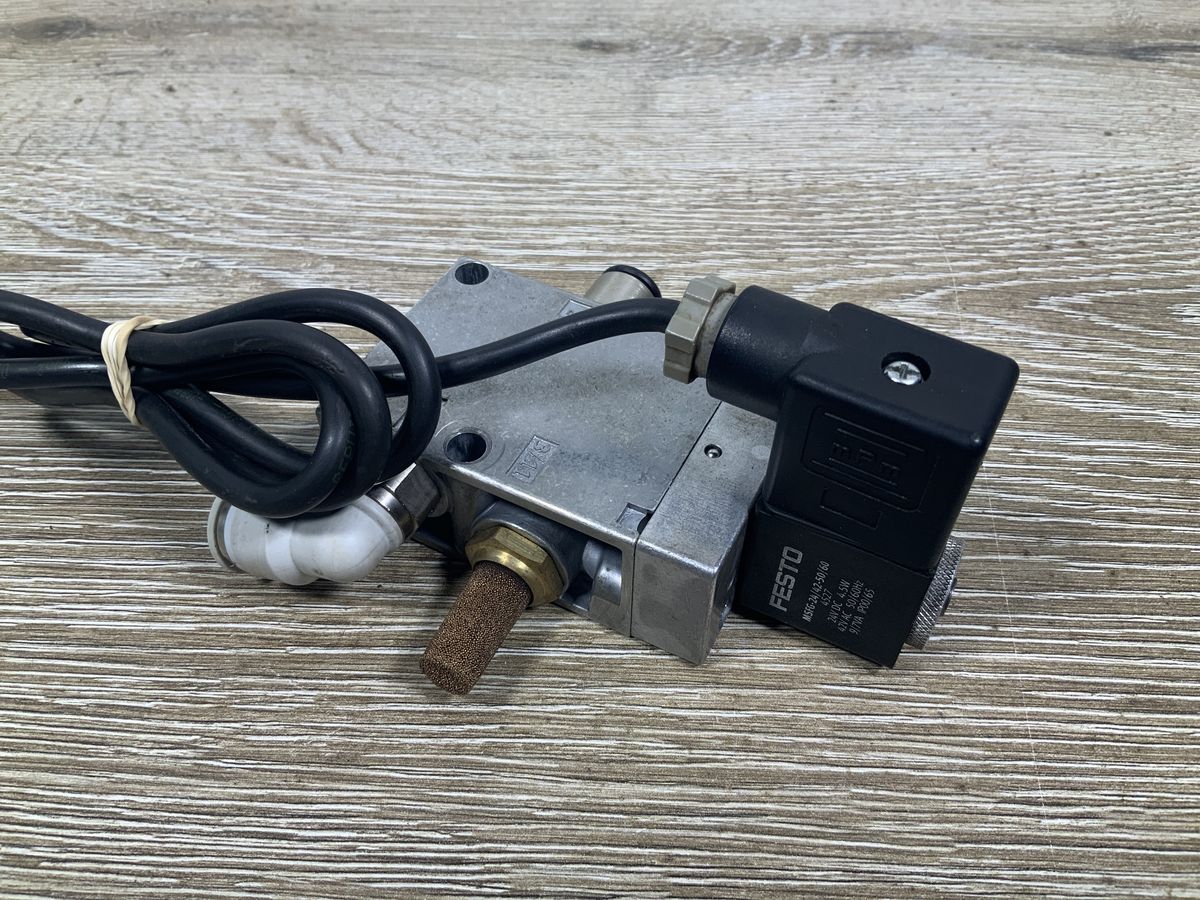

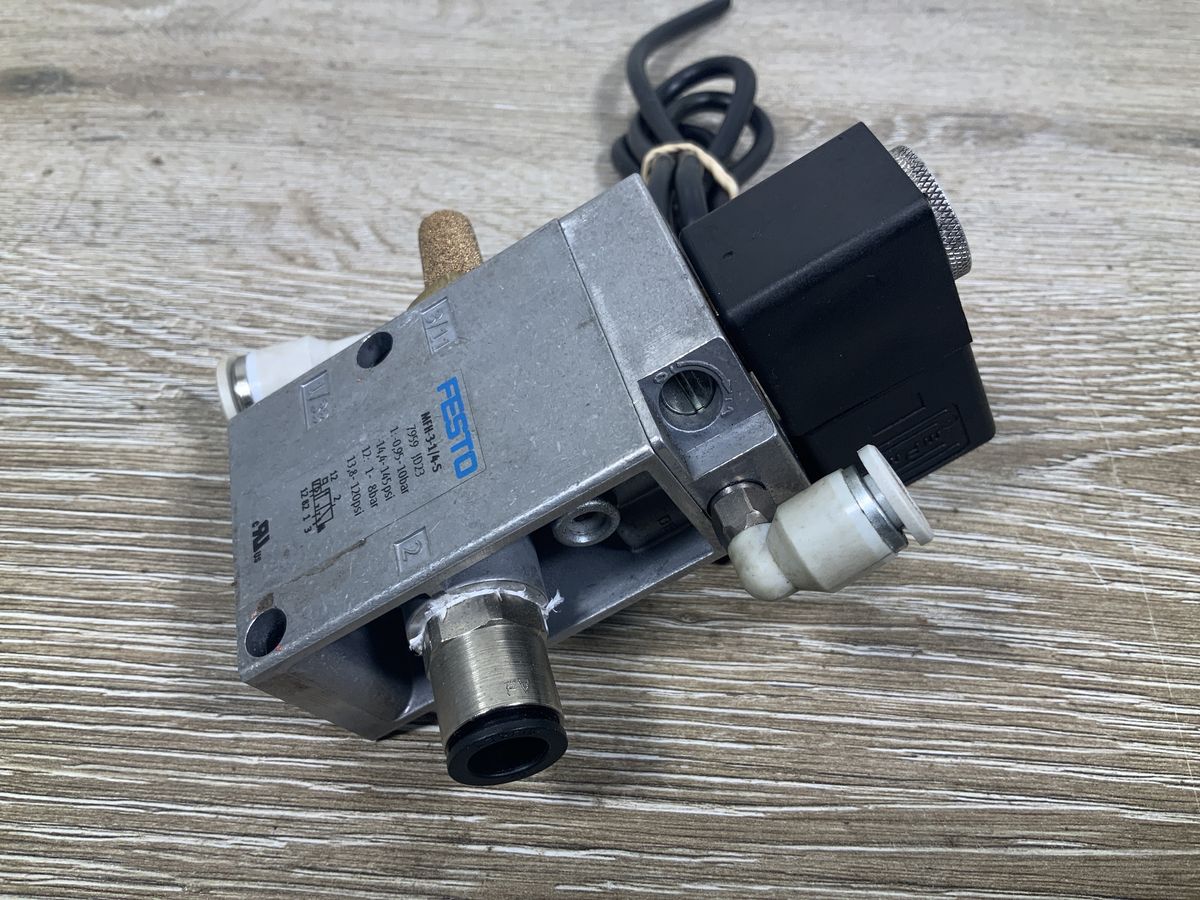

The Festo MFH-3-1/4-S (7959) is a Tiger Classic 3/2-way monostable single solenoid valve designed for pneumatic control applications. It operates within a pressure range of -0.95 to 10 bar with external pilot pressure of 1 to 8 bar. The valve body is fitted with a Festo MSFG-24/42-50/60 solenoid coil (24V DC / 42V AC) and pneumatic push-in fittings.

Specifications – MFH-3-1 / 4-S

Parameter	Specification
Part Number	7959 ID23
Operating Pressure (Port 1)	-0.95 - 10 bar (14.4 - 145 psi)
Pilot Pressure (Port 12)	1 - 8 bar (13.8 - 120 psi)
Solenoid Coil Model	MSFG-24/42-50/60 (Part no. 4527)
Coil Voltage	24V DC / 42V AC 50/60Hz
Power Consumption	4.5W (DC) / 9/7VA (AC)
IP Rating	IP00/65
