FLOWSERVE 80037-IP

SKU: 7042

În Stoc

Refurbished

Fără TVA: €100,00 (1 disponibil)

Incl. TVA: €121,00

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Perioade de garanție în funcție de condiții

Nou 12 luni

Recondiționat 6 luni

Utilizat 3 luni

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

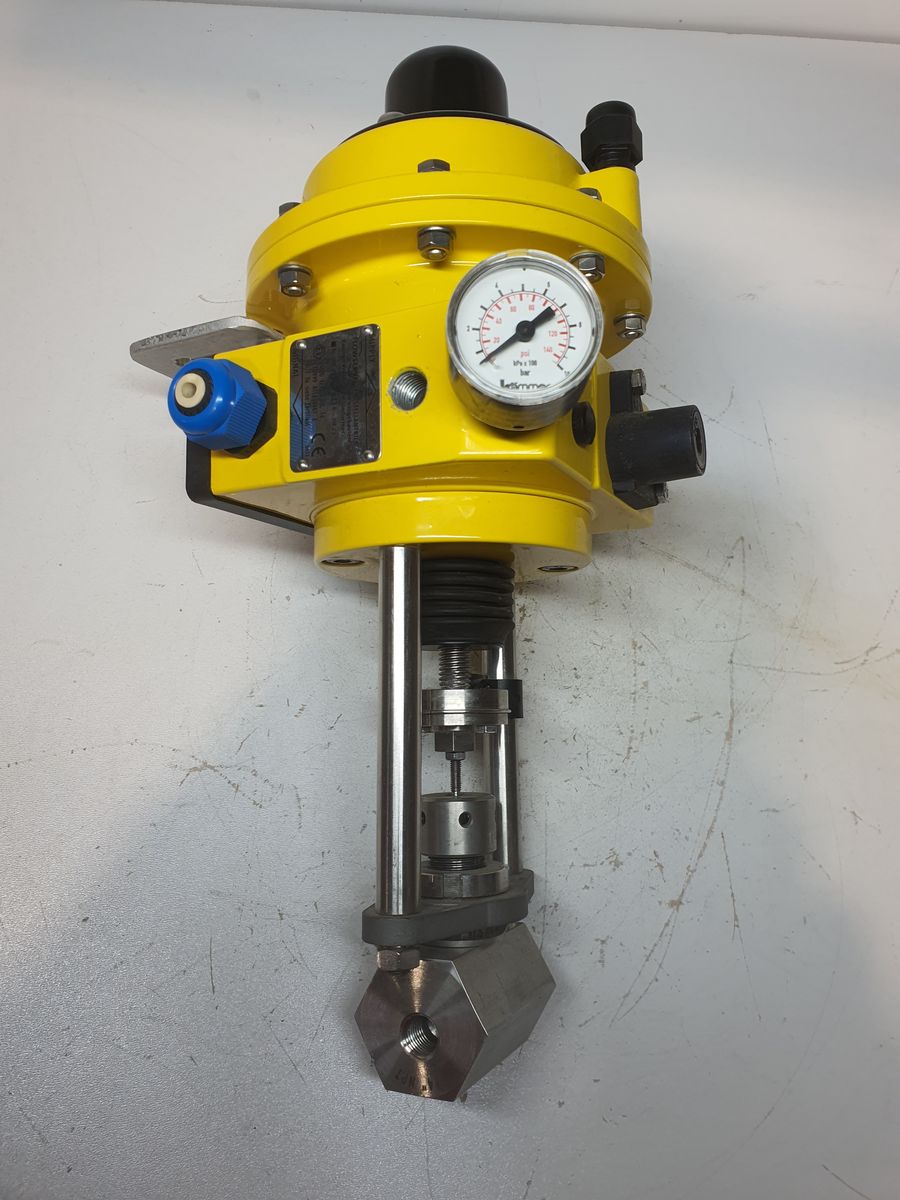

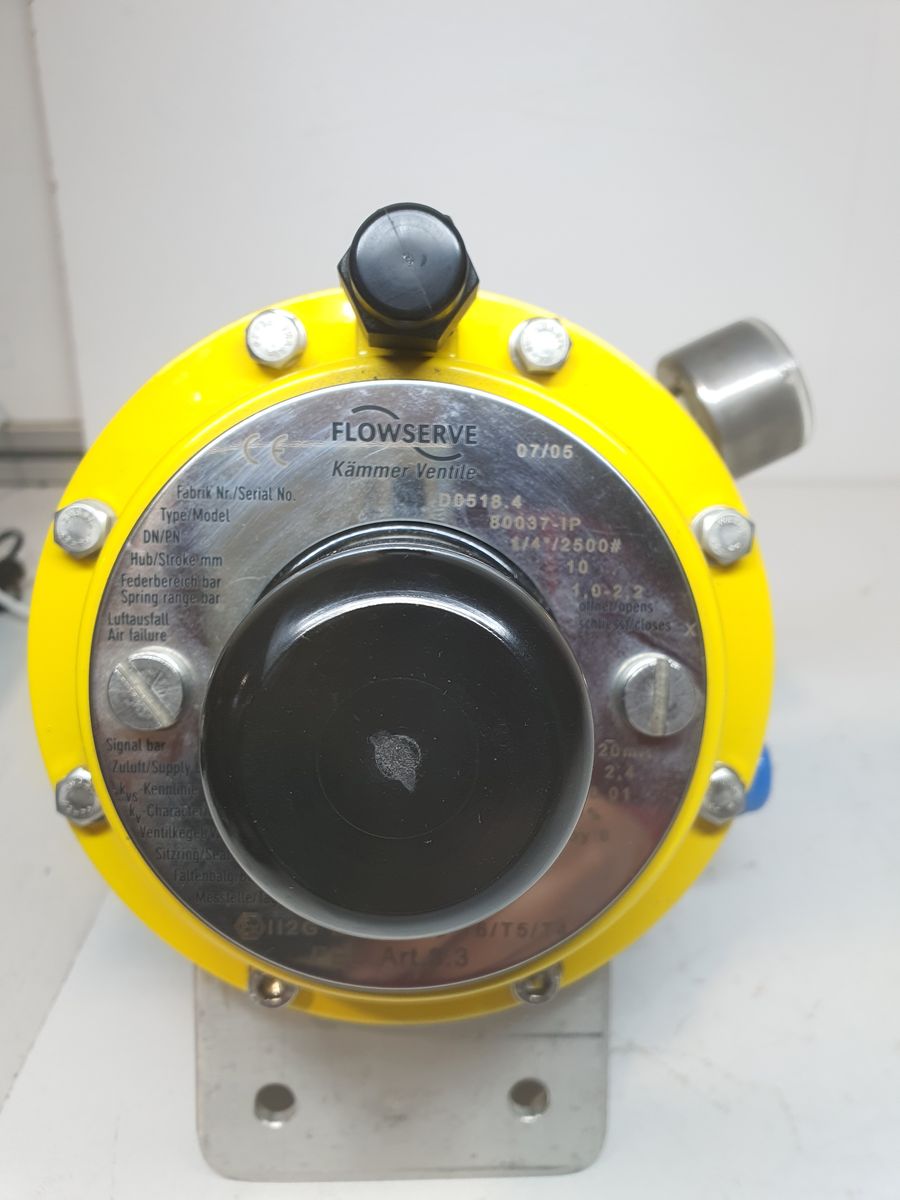

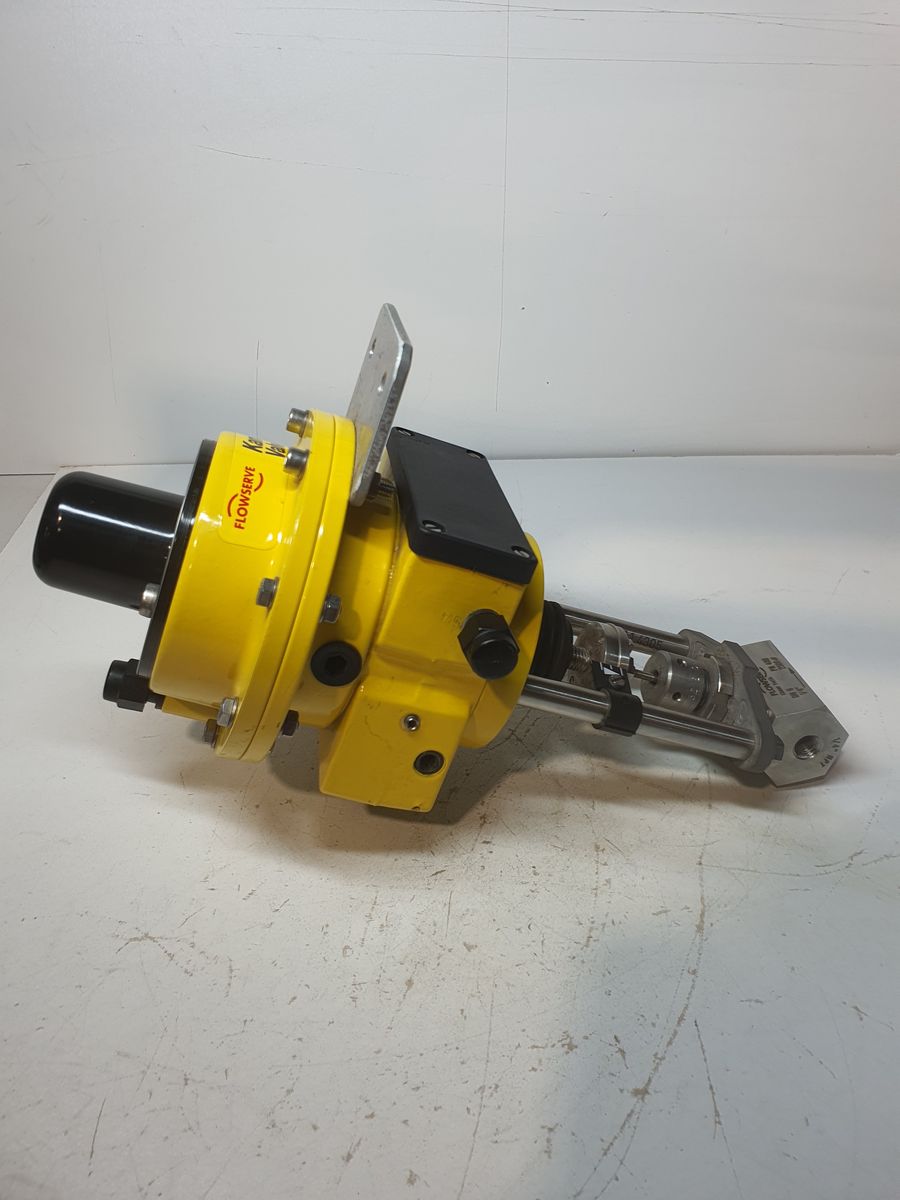

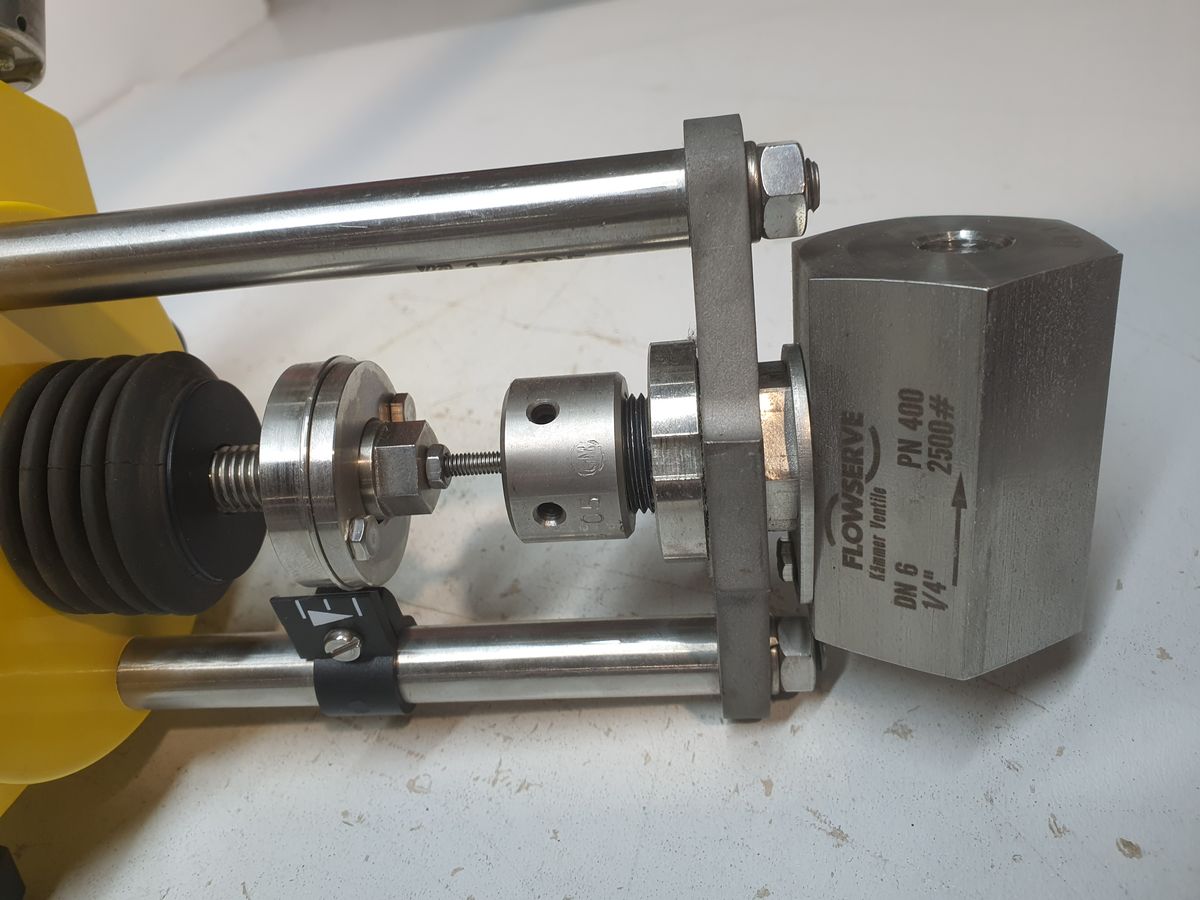

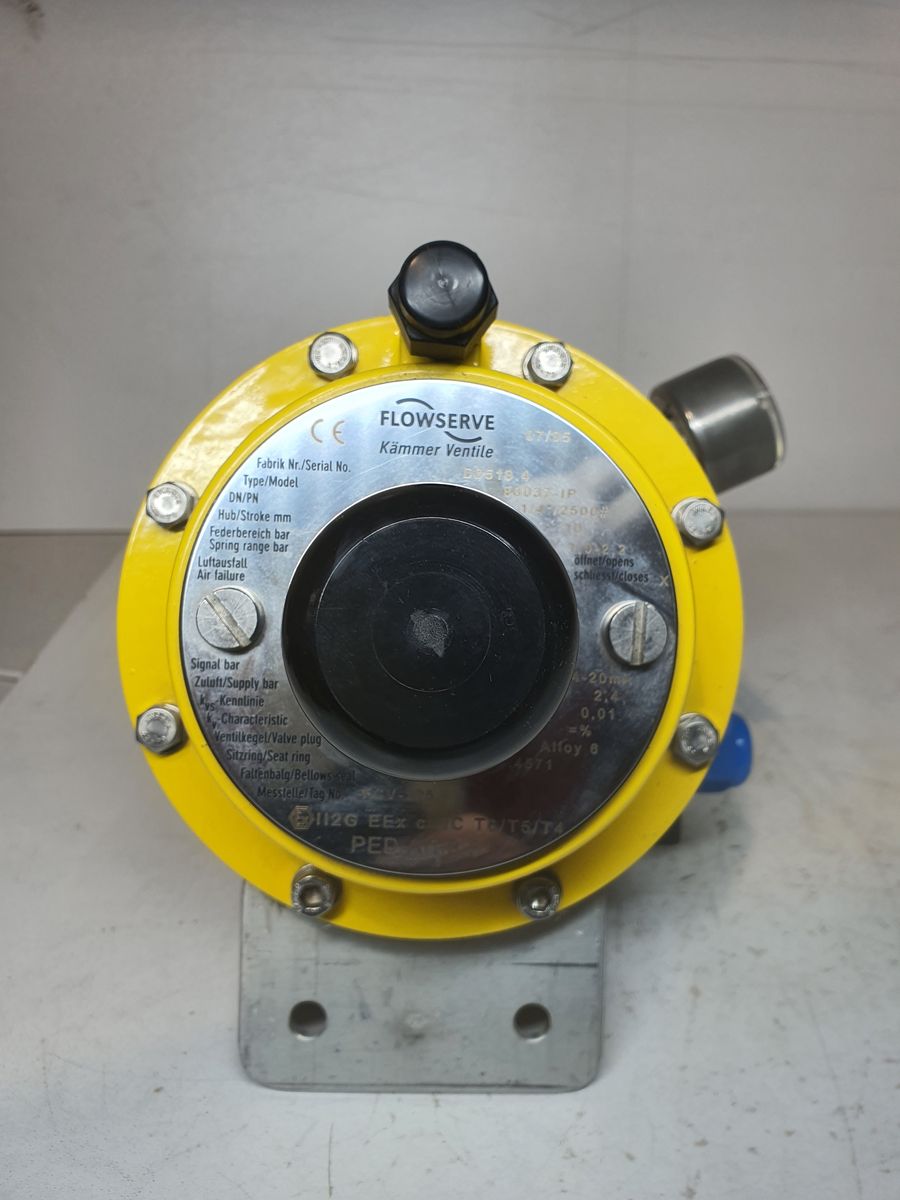

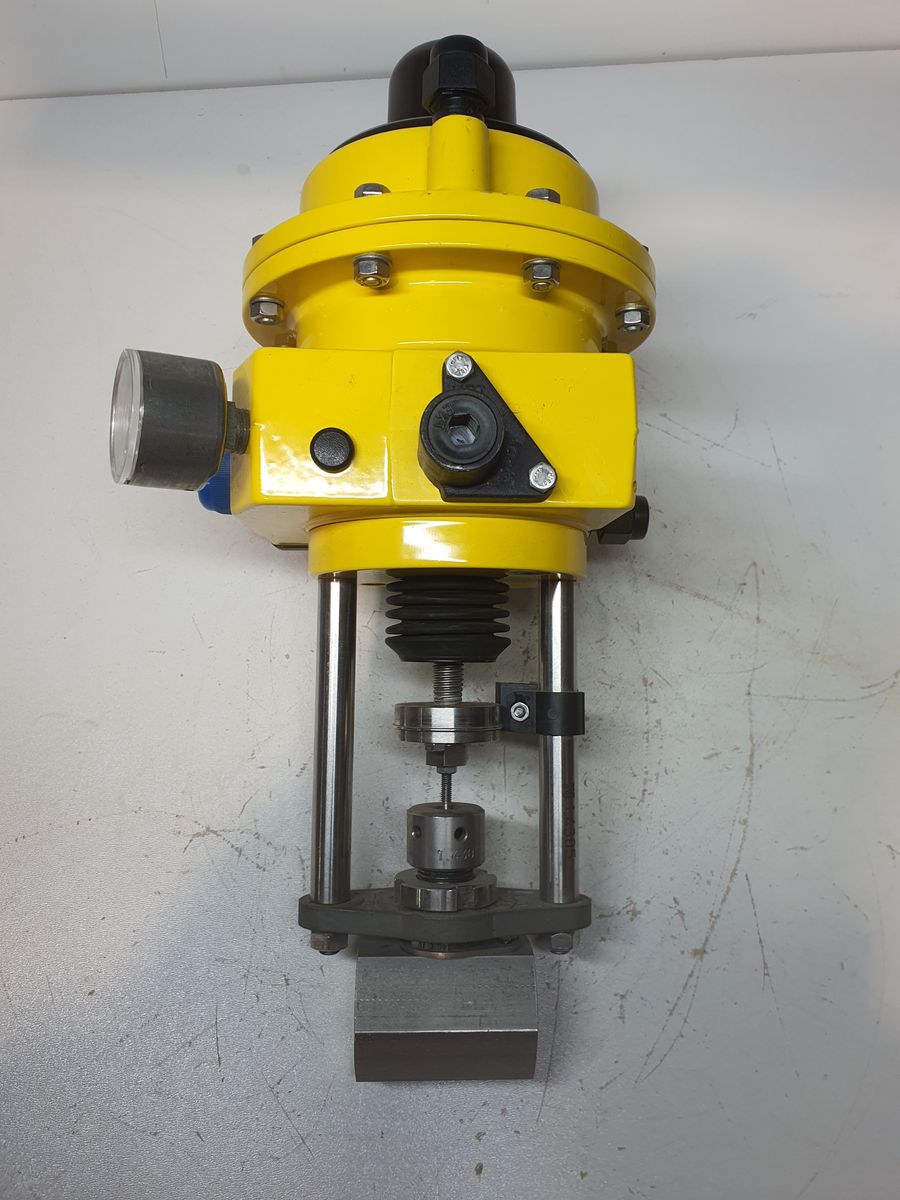

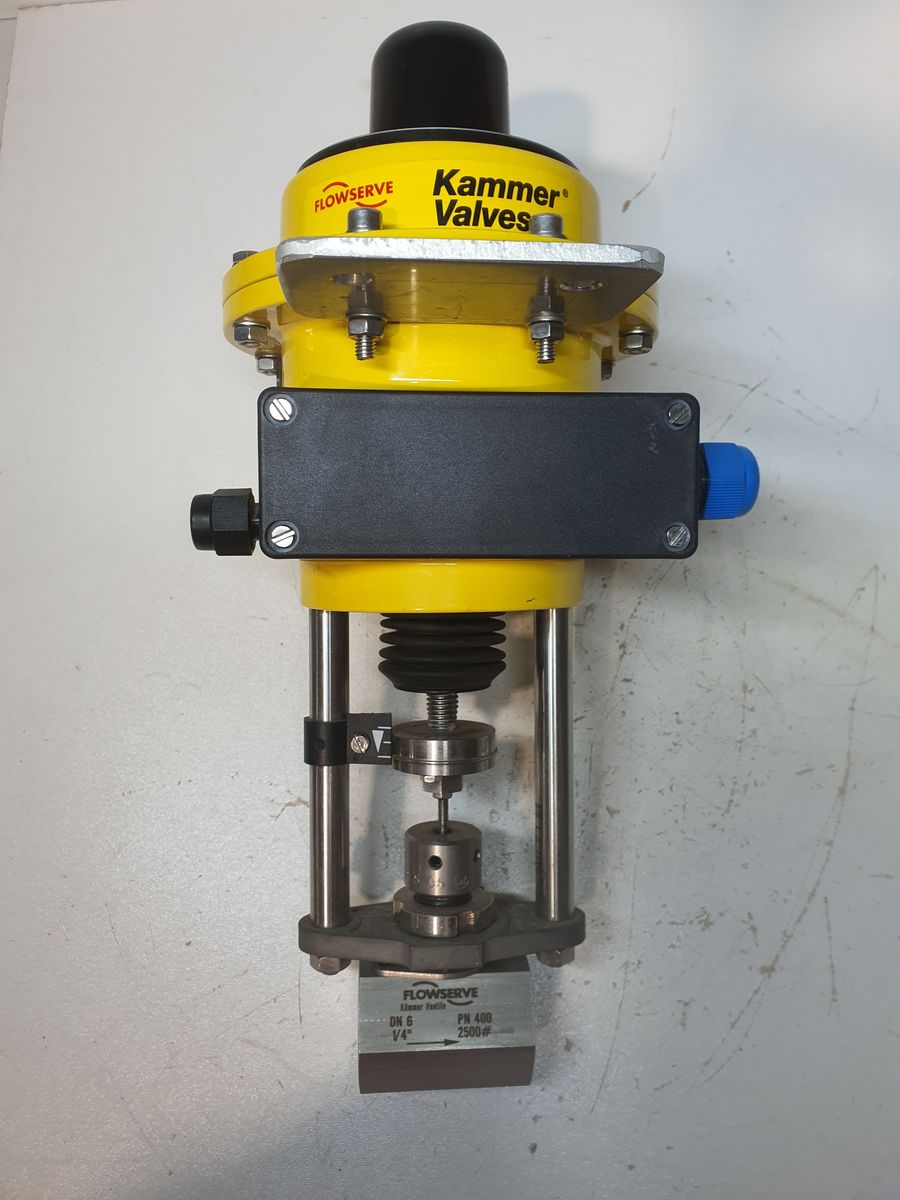

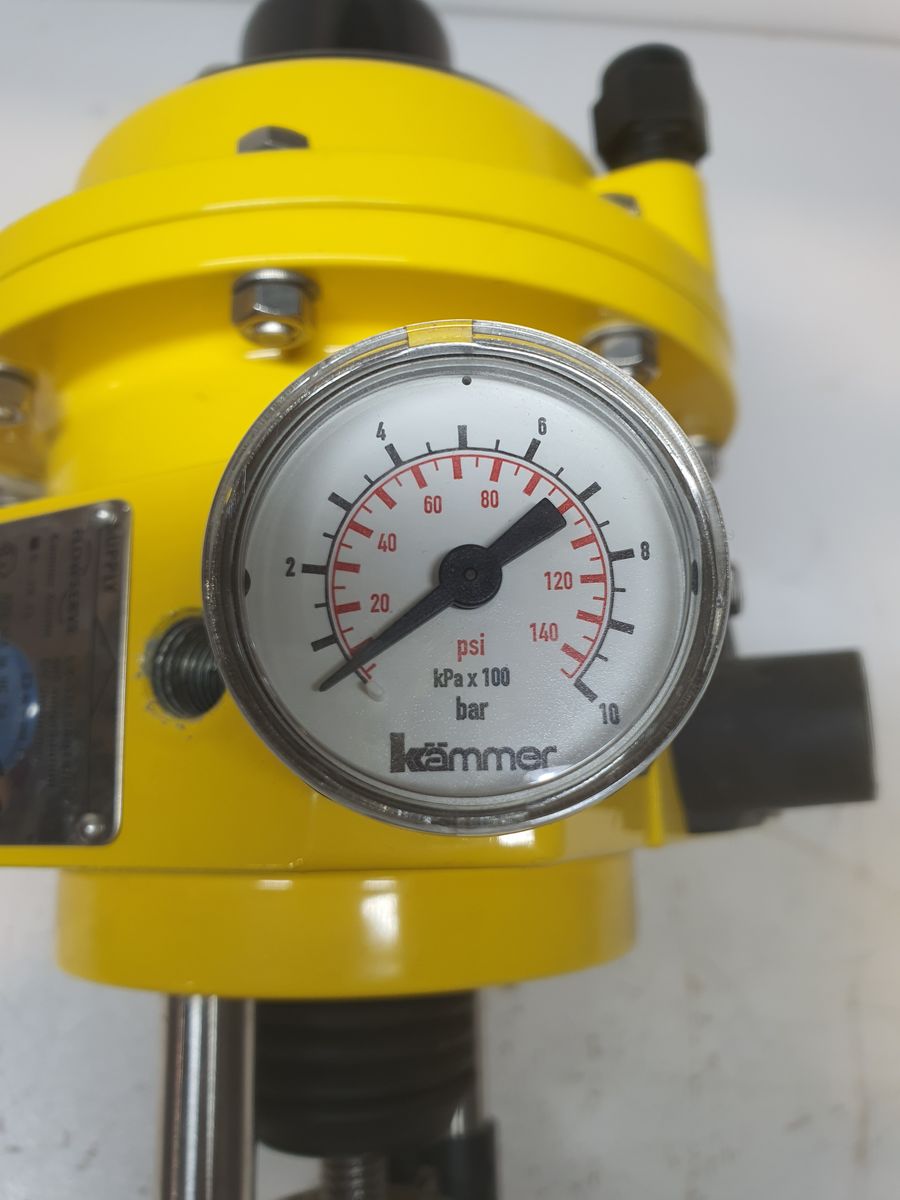

Control Valve by FLOWSERVE

Parameter	Specification
Manufacturer	Flowserve
Model	80037-IP
Valve Type	Control Valve (Micro-flow / Globe type)
Nominal Size	1/4" (DN 8 approx.)
Pressure Rating	Class 2500 (≈ PN 420)
Stroke	10 mm
Control Signal	4–20 mA

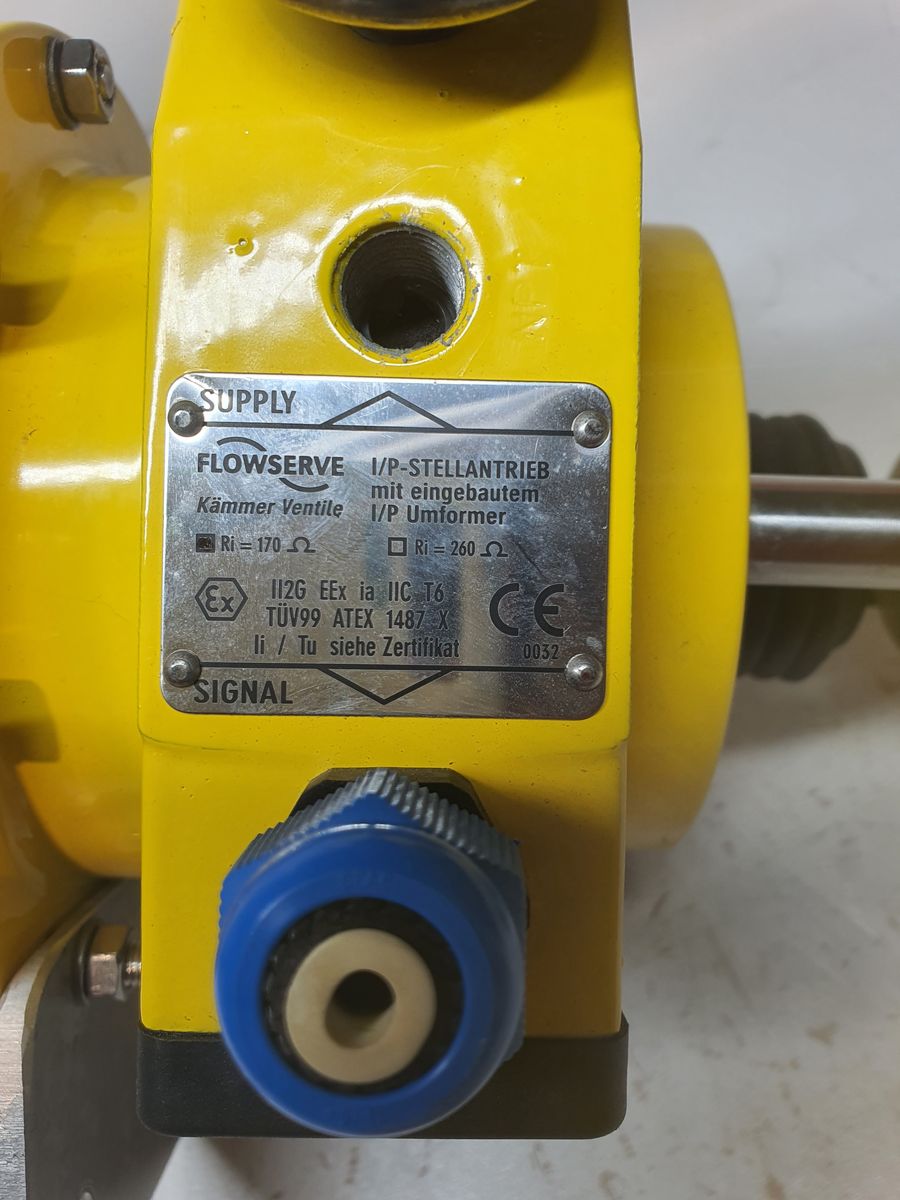

Actuation Type	Electro-pneumatic (I/P positioner)
Supply Pressure	2.4 bar
Spring Range	1.0 – 2.2 bar
Flow Coefficient (Kv)	0.01
Flow Characteristic	Linear / Micro-flow (very fine control)
Valve Plug Material	Alloy 6 (Stellite)
Seat Ring Material	1.4571 (AISI 316Ti Stainless Steel)
Service Type	High-pressure, low-flow applications
Typical Applications	Chemical dosing, sampling, instrumentation
Status	Discontinued model
