Valve

Swagelok SS-83XPS4

SKU: 2010

În Stoc

Livrare 24/7 posibilă

Utilizat
Obținut din mediu de lucru

Fără TVA: €50,00 (1 disponibil)

Incl. TVA: €60,50

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Perioade de garanție în funcție de condiții

Nou 12 luni

Recondiționat 3 luni

Utilizat DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

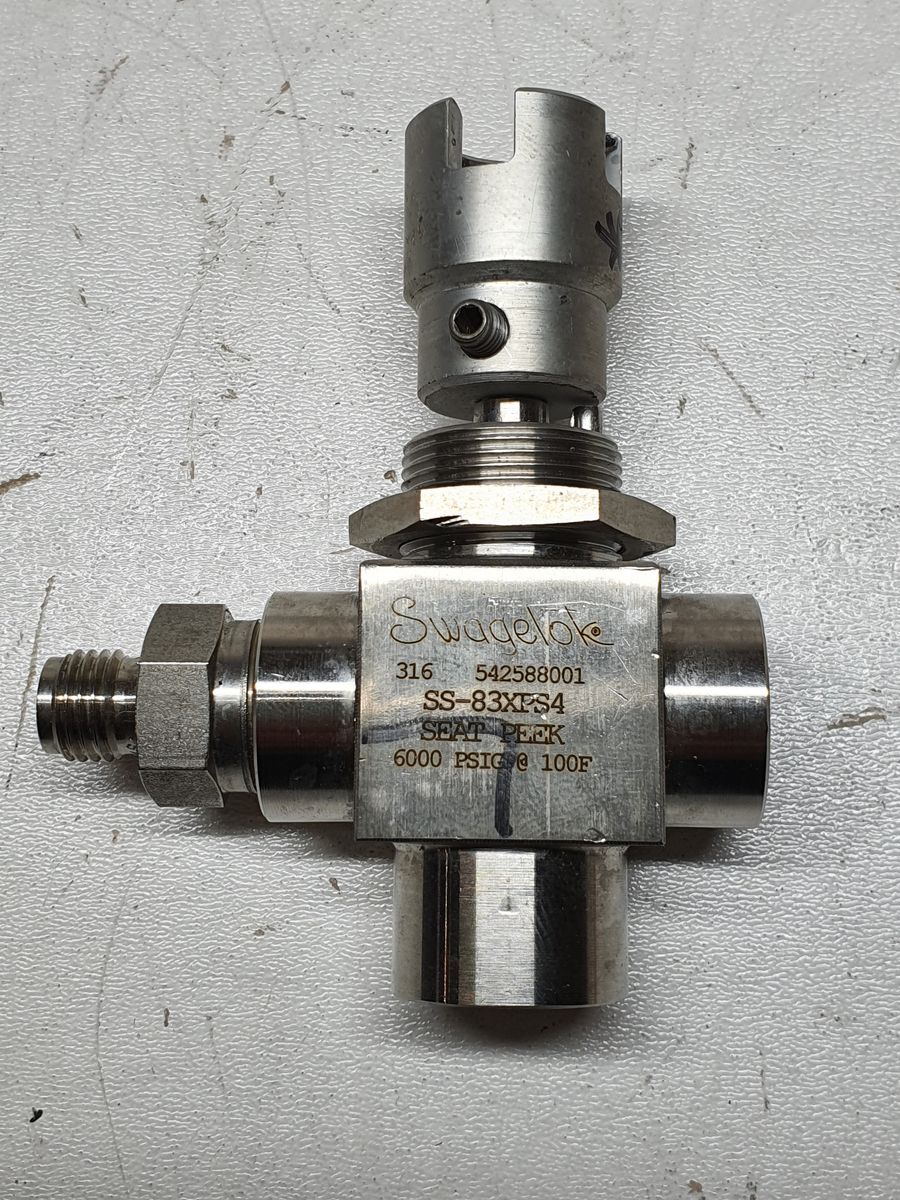

Swagelok 3-Way Ball Valve – SS-83XPS4-53S-L1

Specification	Detail
Product Name	Stainless Steel 3-Way High-Pressure Ball Valve
Model / Part No.	SS-83XPS4-53S-L1
Valve Series	83 Series Trunnion-Style Ball Valve
Flow Configuration	3-Way, Switching
Body Material	316 Stainless Steel
Seat Material	PEEK
Connections	1/4 in.Tube Fitting × 1/4 in. Tube Fitting × 1/4 in. Female NPT
Maximum CV	0.75
Handle Style	Phenolic handle, black (manual override on unactuated version)
Low Emissions Certified	Yes
Cleaning	Standard Cleaning and Packaging (SC-10)
Valve Pressure/Temp Ratings	6000 psi, 100F
Actuation	Spring-return pneumatic interface for MS-153-SR
Limit Switches	Two SPDT (L1 configuration) for position feedback (installed with actuator)
Applications	3-way flow switching in high-pressure instrument & process systems
