Reglatoare

Tescom 44-2262-241

SKU: 8008

În Stoc

Utilizat

Fără TVA: €100,00 (1 disponibil)

Incl. TVA: €121,00

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Perioade de garanție în funcție de condiții

Nou 12 luni

Recondiționat DOA

Utilizat DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

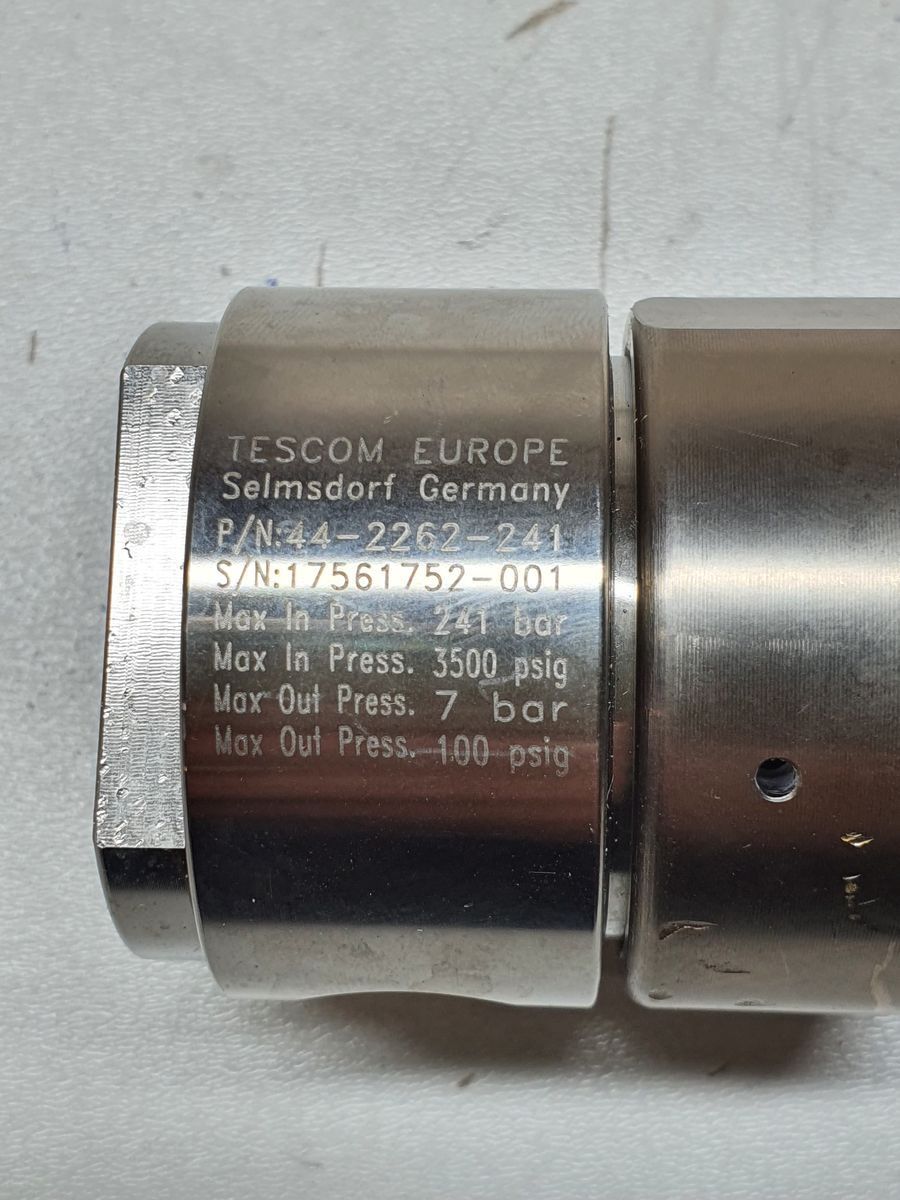

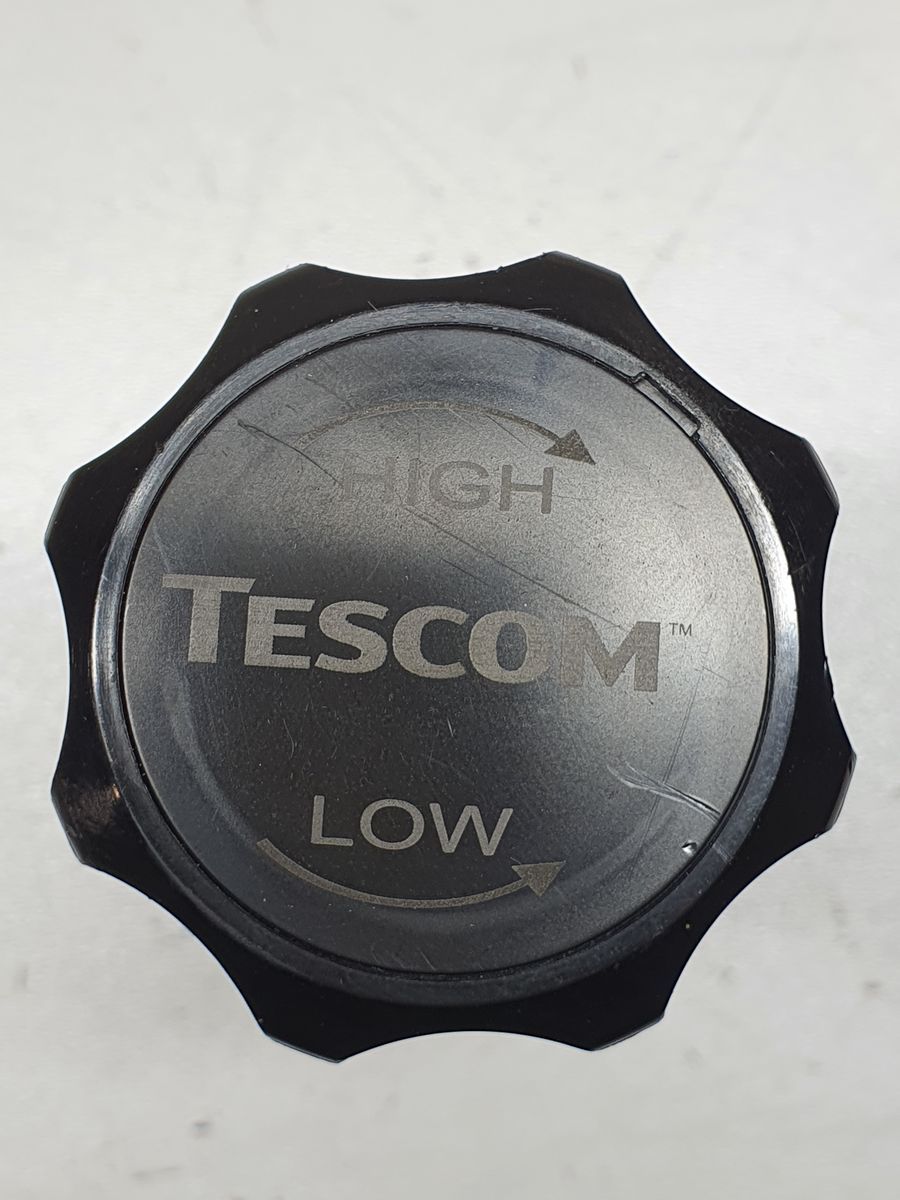

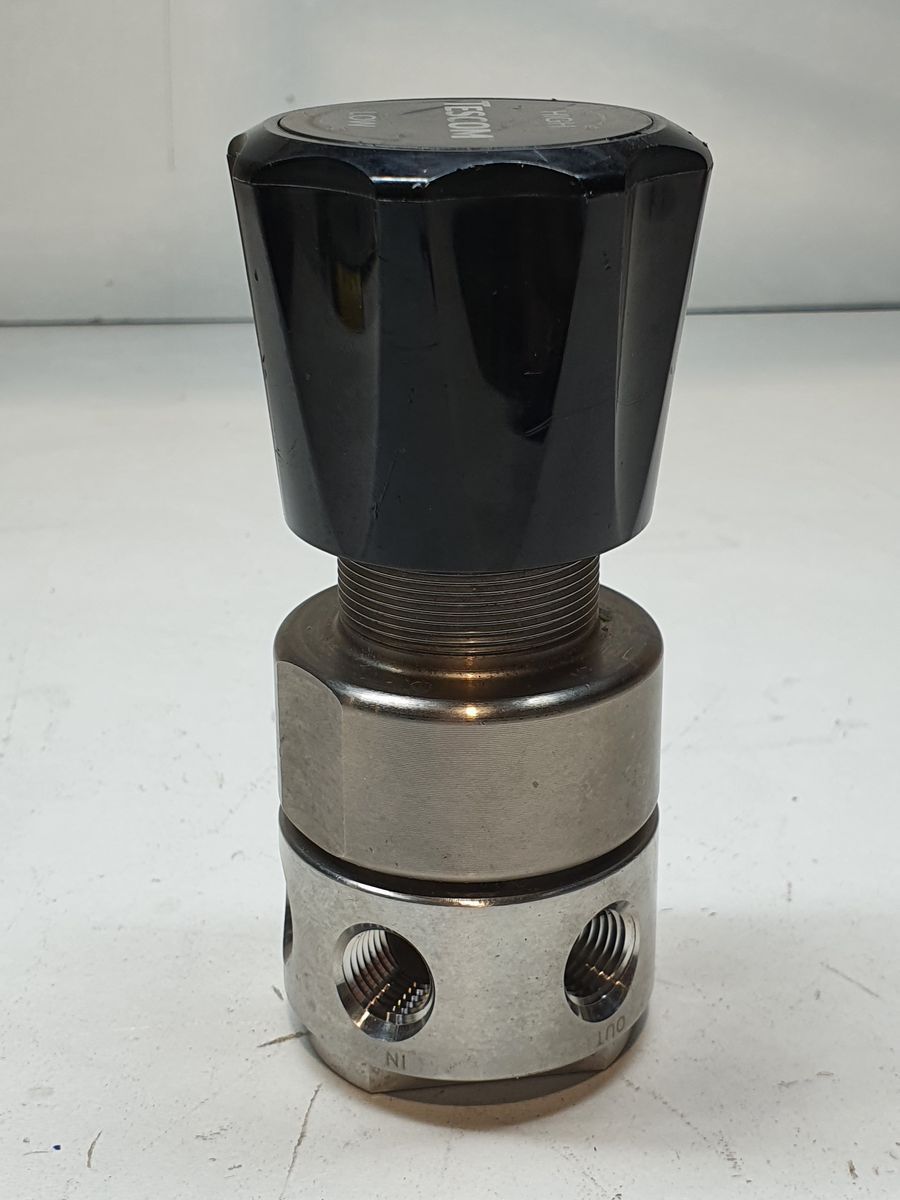

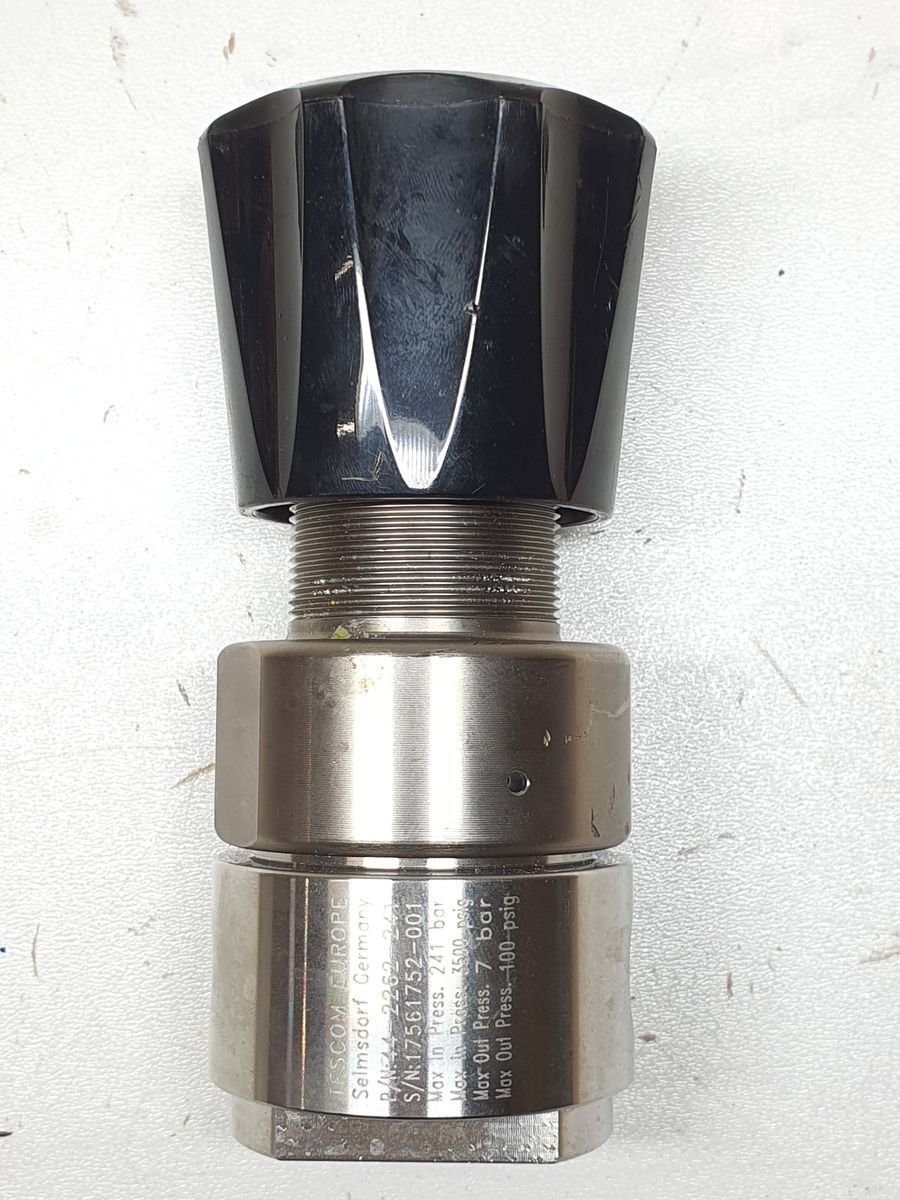

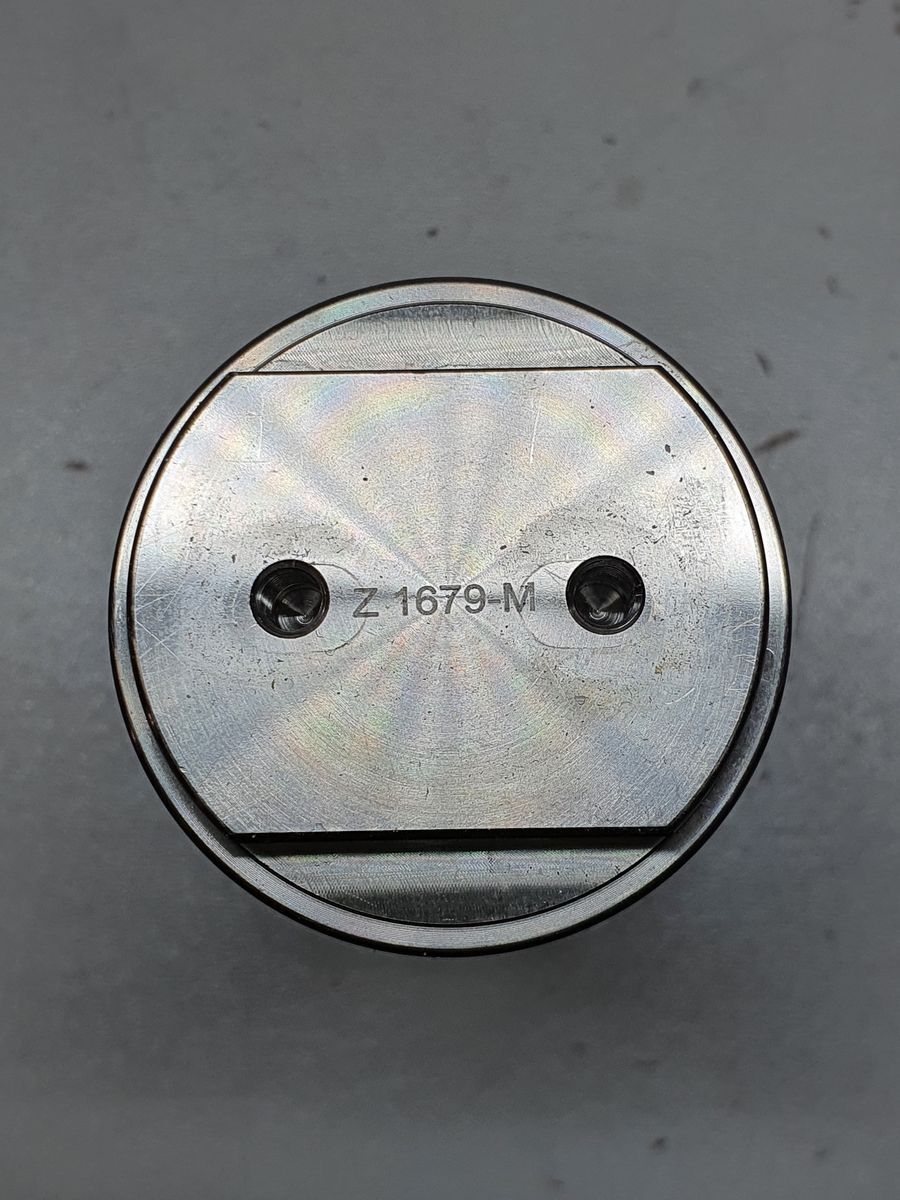

Tescom 44-2262-241 single-stage, pressure-reducing regulator

Category	Parameter	Specification
Operating Parameters	Model	44-2262-241
	Series	Tescom 44-2200
	Regulator Type	Single-stage, pressure-reducing
	Maximum Inlet Pressure	3500 psig / 241 bar
	Rated Outlet Pressure Range	0–100 psig / 0–7 bar
	Flow Capacity	Cv = 0.06 (at 3500 psig inlet)
	Internal Leakage	Bubble tight (internal)
	Proof Pressure	150 % of maximum rated
Materials & Ports	Body Material	316L Stainless Steel (typical)
	Seat Material	PTFE
	Diaphragm Material	316 Stainless Steel or Elgiloy® (configuration-dependent)

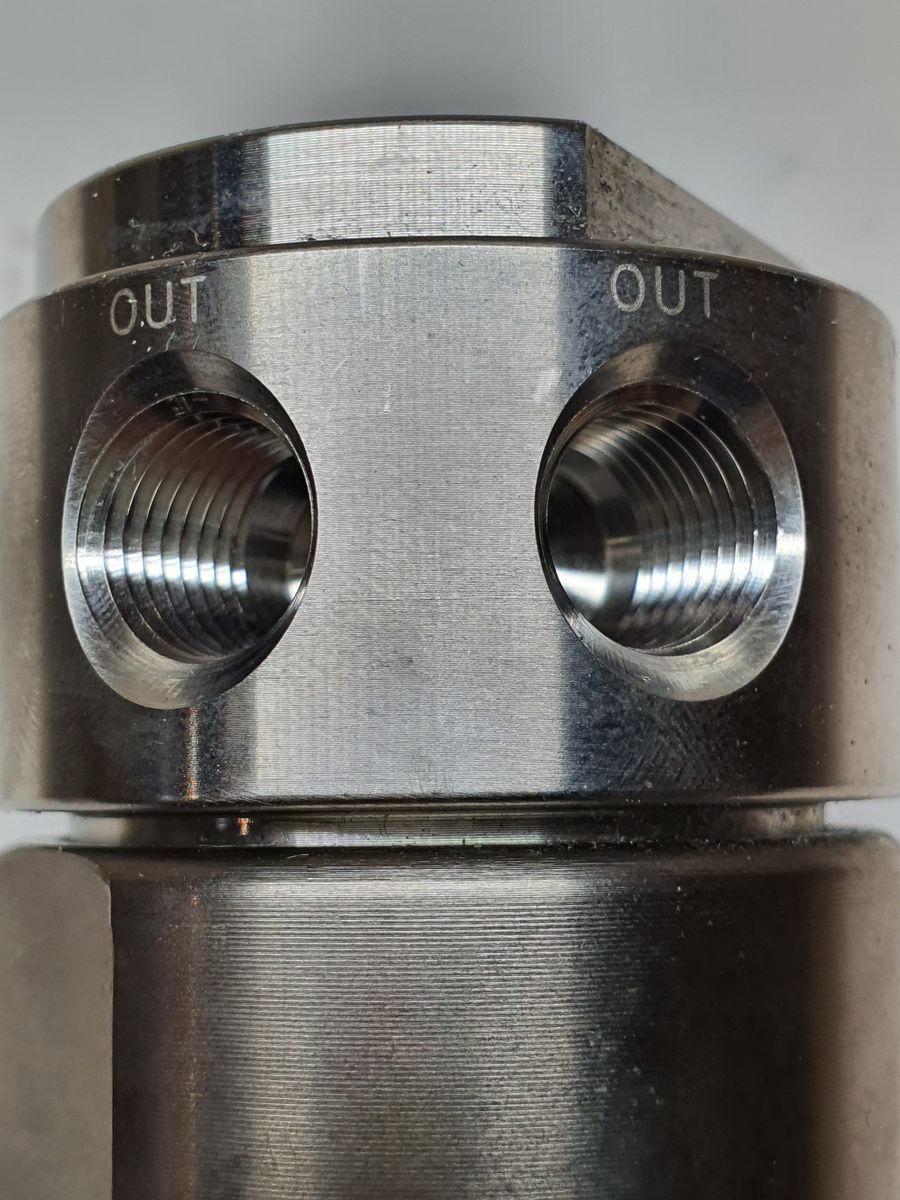

	Port Size / Type	1/4″ NPT(F)
	Weight	Approx. 0.9 kg / 2 lbs (without gauges)
Environmental	Operating Temperature	−40 °C to +74 °C (−40 °F to +165 °F)
	Compliance	Designed to meet ANSI/ASME B31.3 pressure equipment criteria
