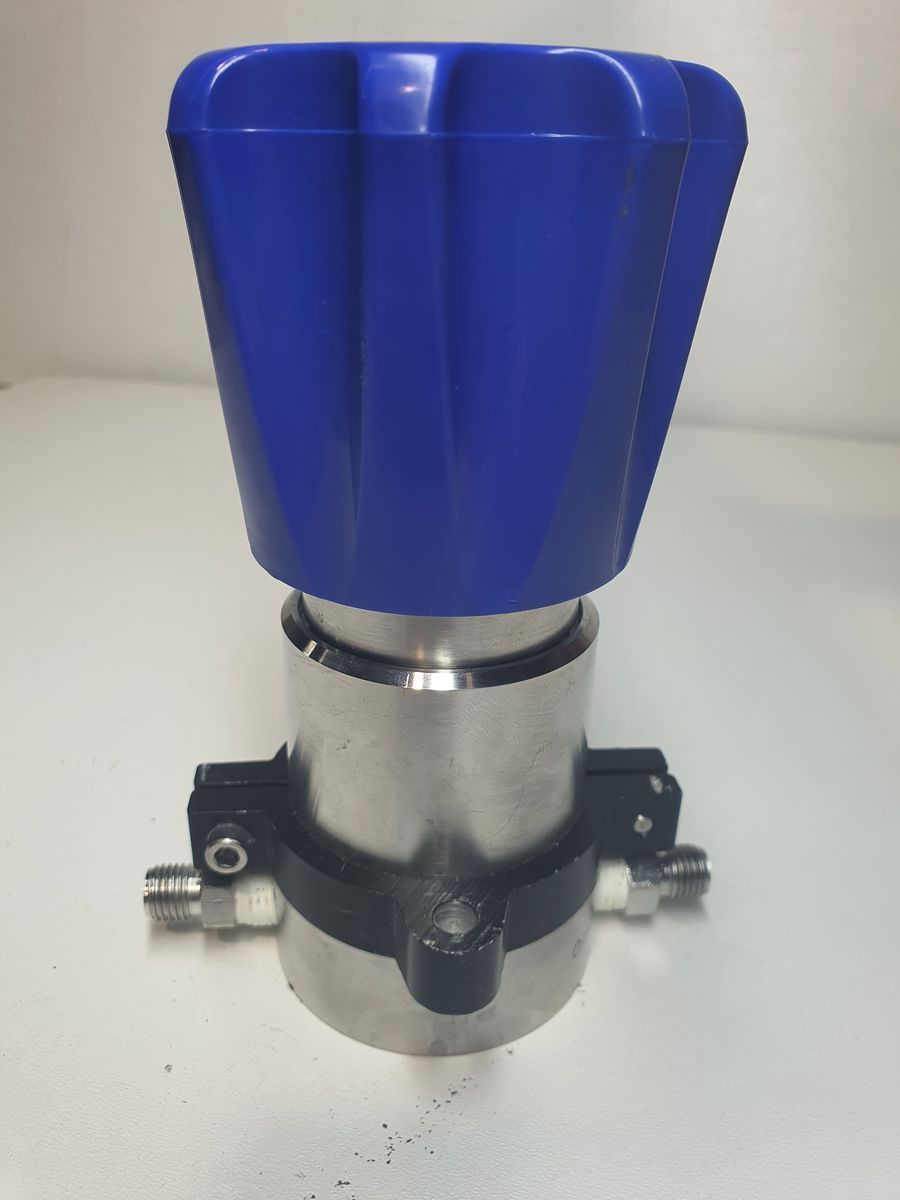

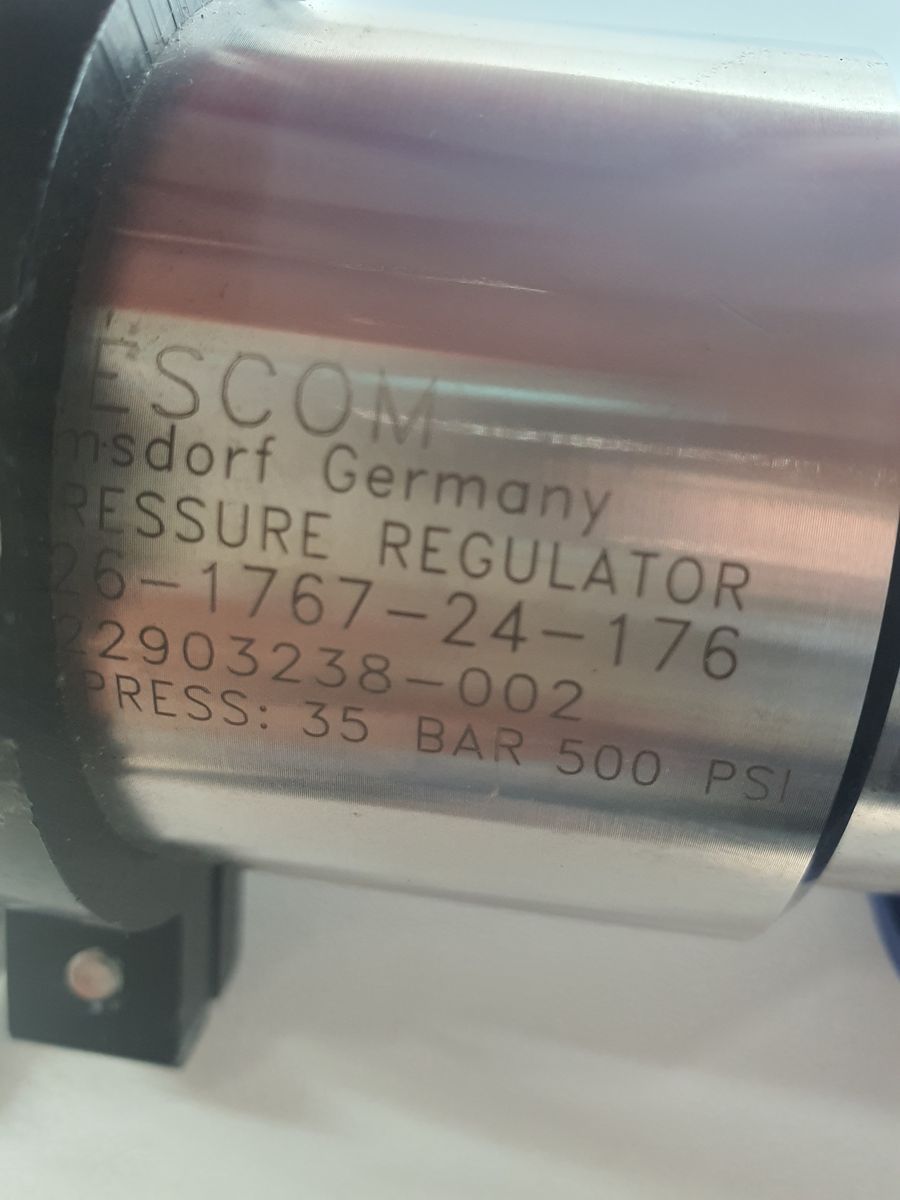

Tescom Selmsdorf Germany 26-1767-24-176 Pressure regulator

Category	Parameter
Regulator Type	Controlled pressure-reducing regulator
Series	TESCOM 26-1700
Model	26-1767-24-176
Maximum Inlet Pressure	10,000 psig (689 bar)
Adjustable Outlet Pressure Range	5–500 psig (0.35–34.5 bar)
Body Material	316 Stainless Steel
Internal Lining Material	300-series Stainless Steel
Seat Material	CTFE
Seal Material	CTFE
O-Rings	Buna-N (nitrile)
Backup Rings	PTFE
Port Size	1/4″
Port Type	NPTF
Operating Temperature Range	−40 °F to +165 °F (−40 °C to +74 °C)
Flow Coefficient	Cv ≈ 0.14
Leakage	Bubble-tight (zero leakage)
Proof / Test Pressure	150 % of maximum rated
Weight	~2.2 kg
